Assembly Instruction BEVRLink Manager HAT Pico & ESP Case

Assembly Instruction BEVRLink Manager HAT Pico & ESP Case

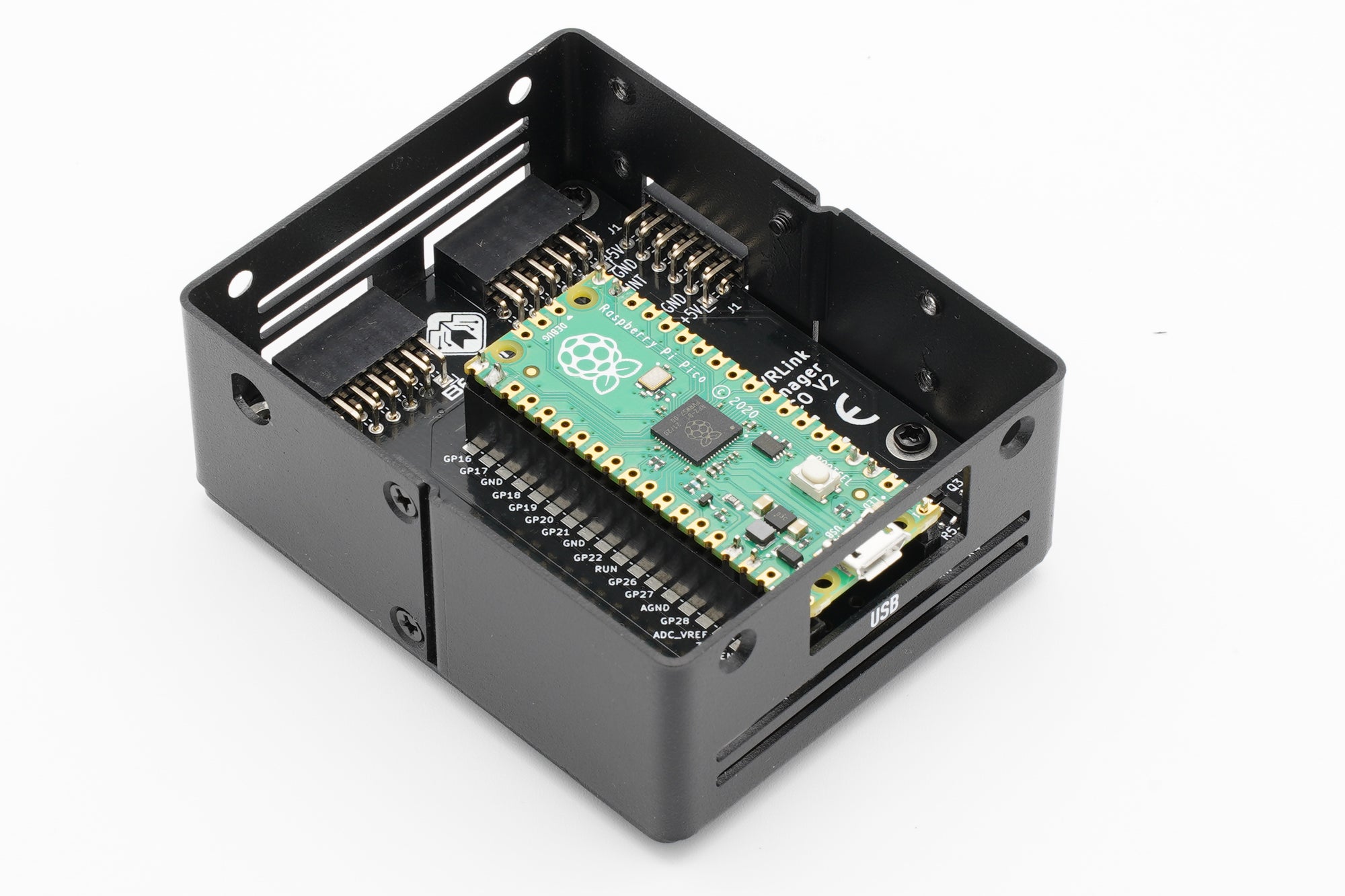

1. Insert the manager Pico or manager ESP board. 2.Secure it with the 4 screws. 3. Mount the Pico or ESP module. 4. Close the lit and secure with the 4 screws.  5. Scan the QR code for pinout i...
Assembly Instruction BEVRLink Manager HAT V1 & V2 Case

Assembly Instruction BEVRLink Manager HAT V1 & V2 Case

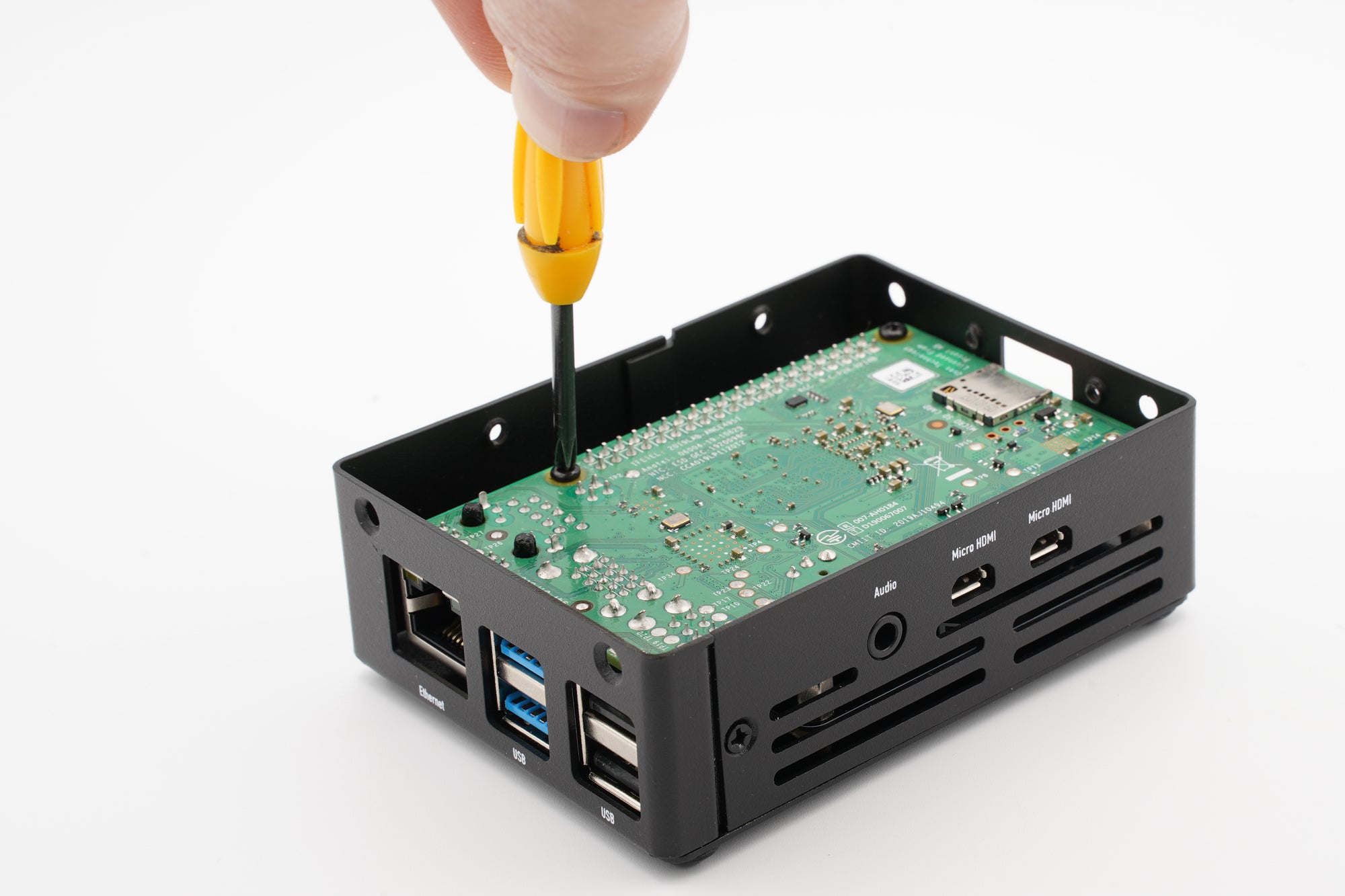

1. Insert the manager board. 2. Tight it with the 4 hexagon standoffs. 3. Remove the screw. 4. Insert the SBC. 5. Secure it with the 4 screws. 6. Tight the screw. 7. Insert Micro SD and secur...
Assembly Instruction BEVRLink 4 Channel Relay Case

Assembly Instruction BEVRLink 4 Channel Relay Case

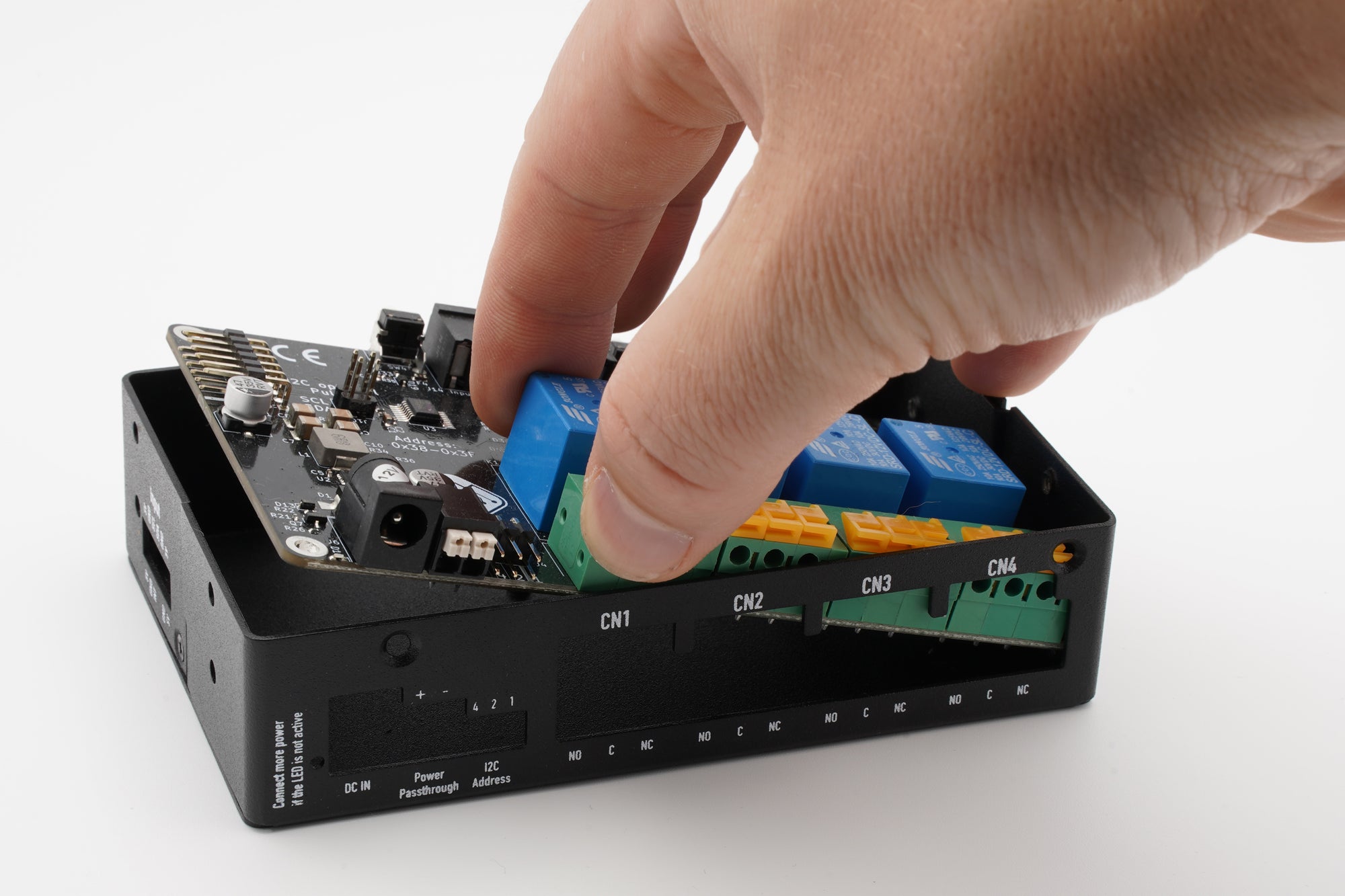

1. Insert the board. 2. Secure the board with the 4 black pan head screws. 3. Insert the light pipes. 4. Mount the lid. Be sure to have the light pipes aligned. You can use a small screwdriver t...
Assembly Instruction BEVRLink 8 Channel Relay Case

Assembly Instruction BEVRLink 8 Channel Relay Case

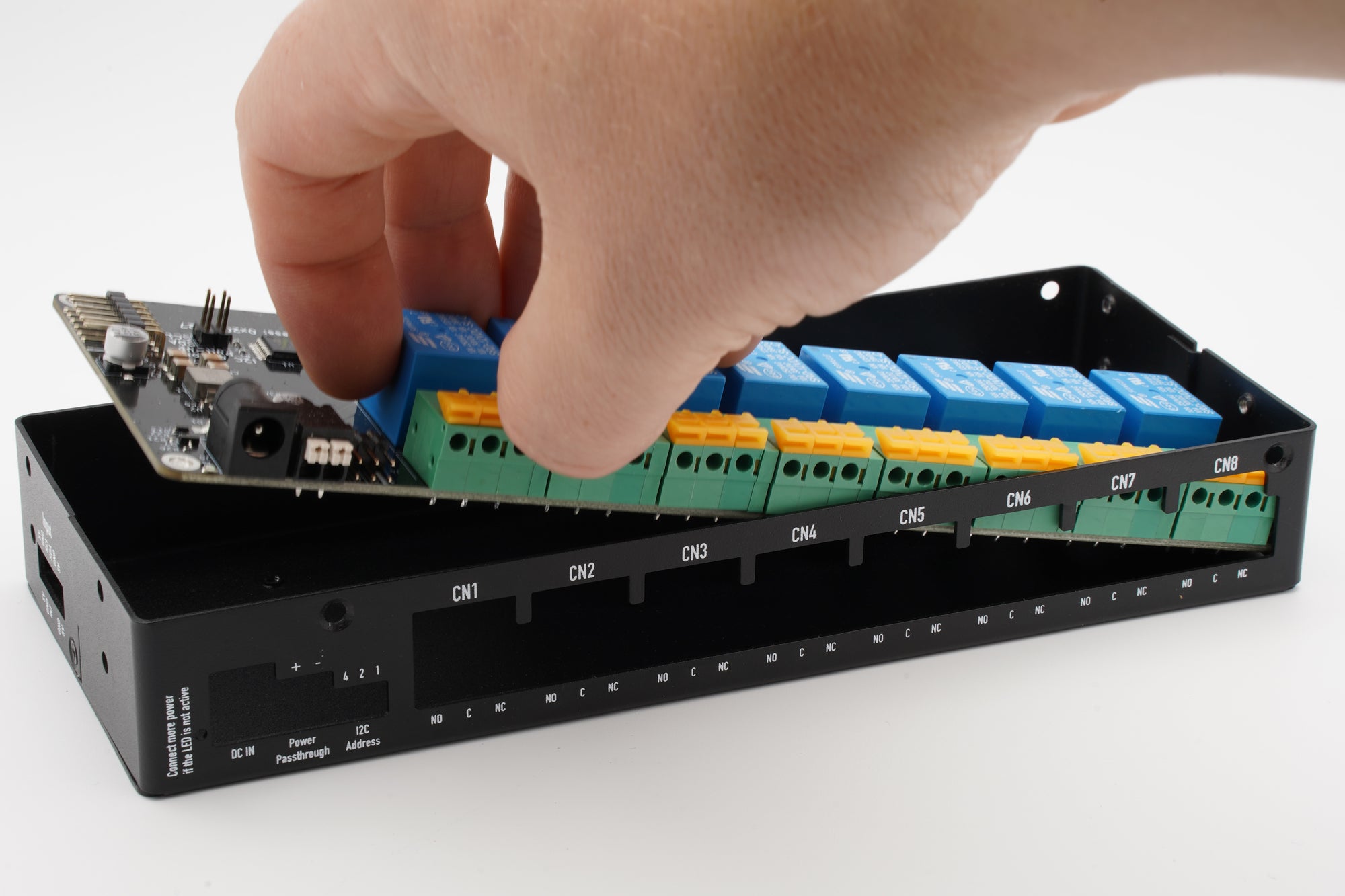

1.  Insert the board. 2. secure with th 4 black pan head screws. 3. Insert the light pipes. 4. Close the lid. If you have not aligned the light pipes well in the previous step you can with the hel...
How to wire directly between the relay and the single board computer/microcontroller

How to wire directly between the relay and the single board computer/microcontroller

If you do not plan to use our manager boards to connect the SBC/microcontroller with the relay you need to wire yourself. We have made wiring examples for some of the most common here. Ask us if yo...
