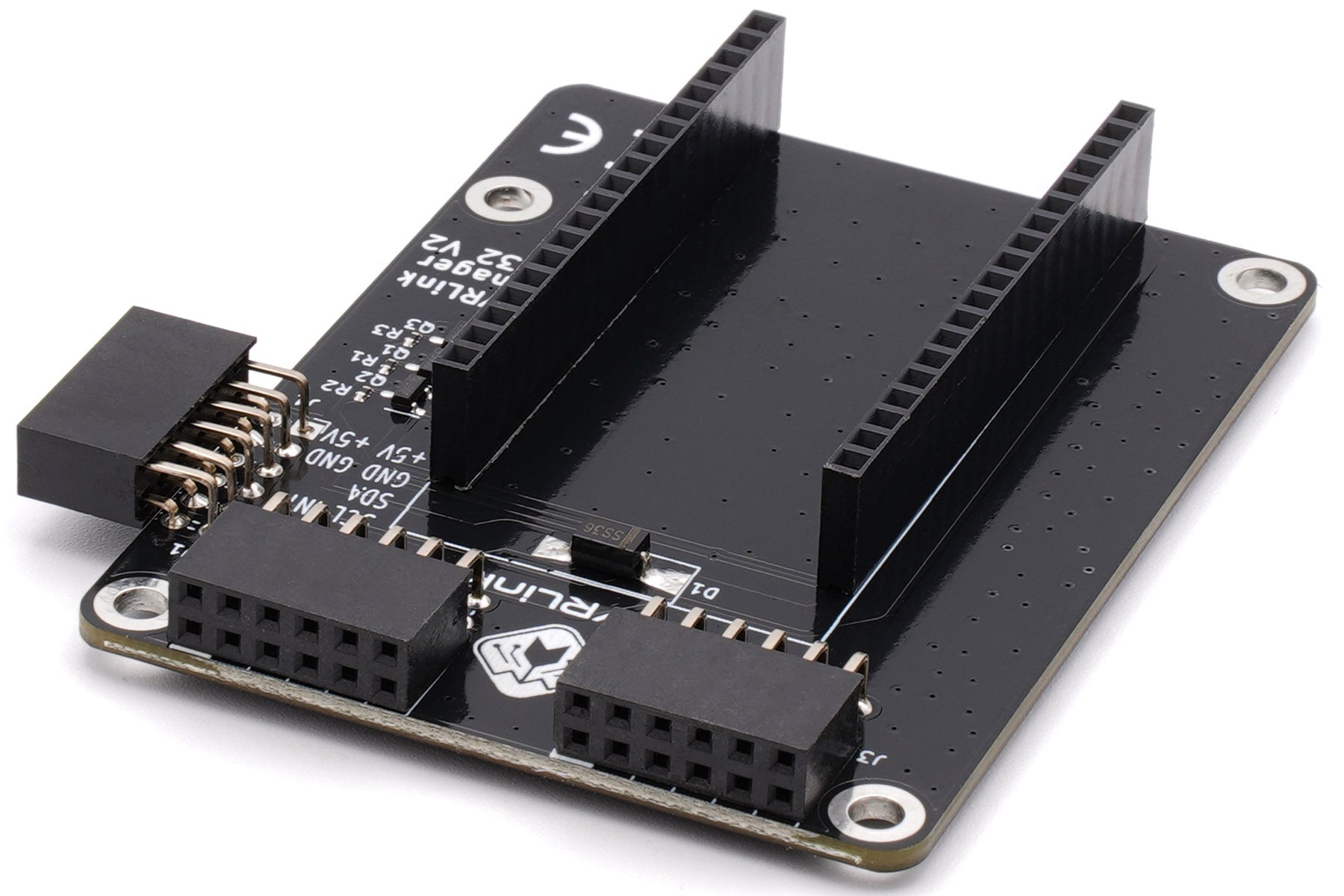

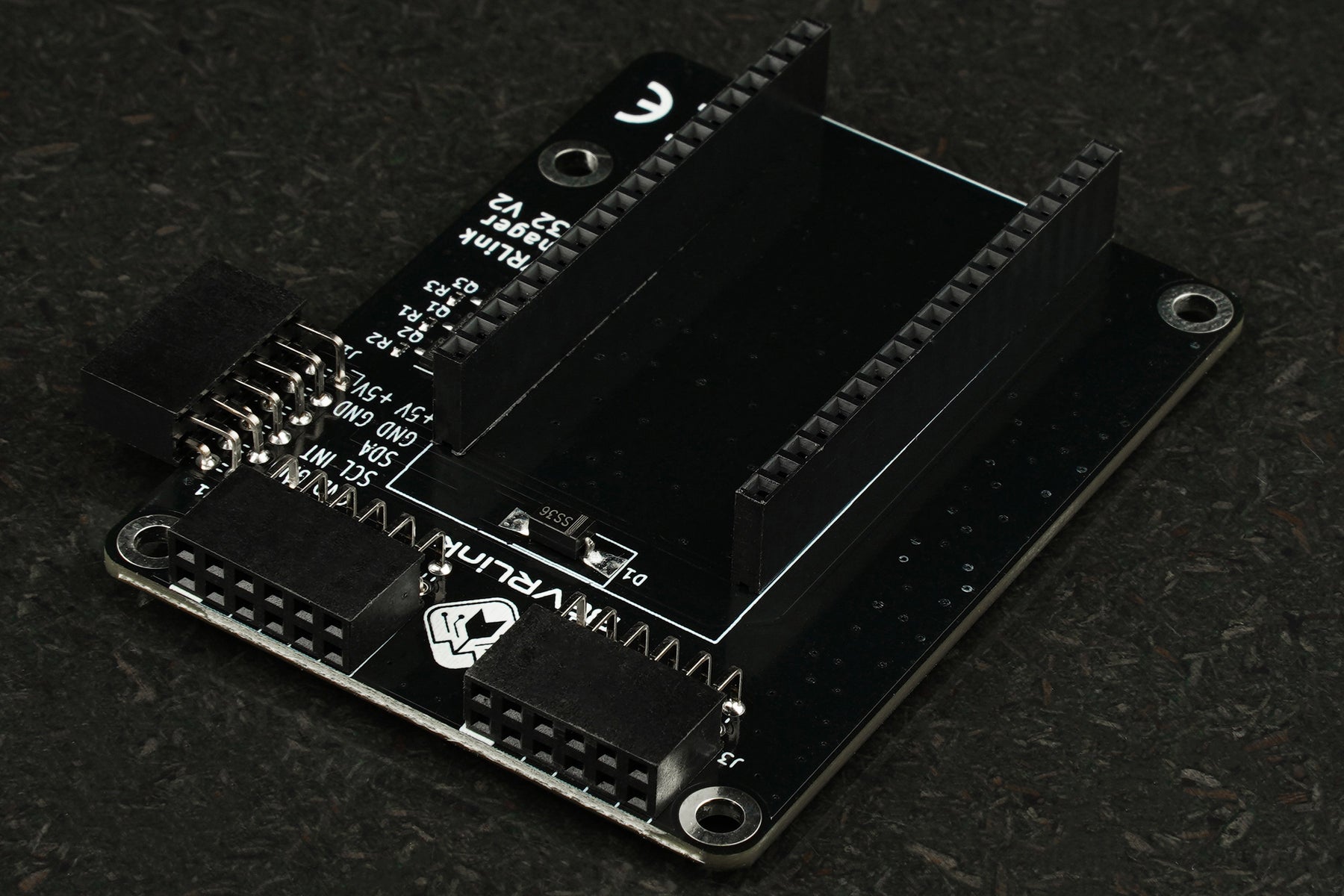

BEVRLink Manager ESP32 V2
BEVRLink Manager ESP32 V2
BEVRLink Manager ESP32 V2
BEVRLink Manager ESP32 V2
BEVRLink Manager ESP32 V2
BEVRLink Manager ESP32 V2
BEVRLink Manager ESP32 V2
BEVRLink Manager ESP32 V2
BEVRLink Manager ESP32 V2

BEVRLink Manager ESP32 V2

€11,95
Incl. VAT
• In stock
Compatible items

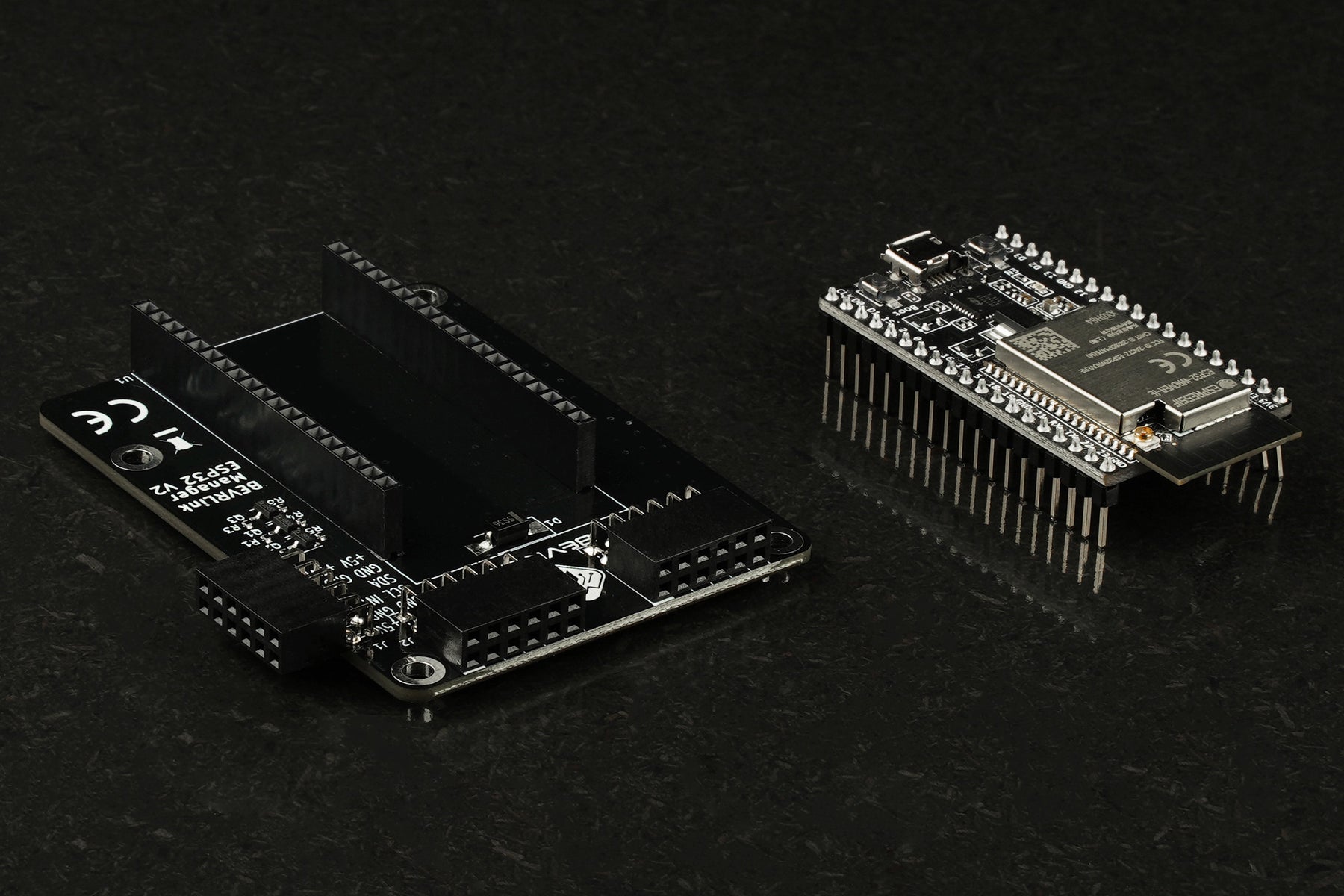

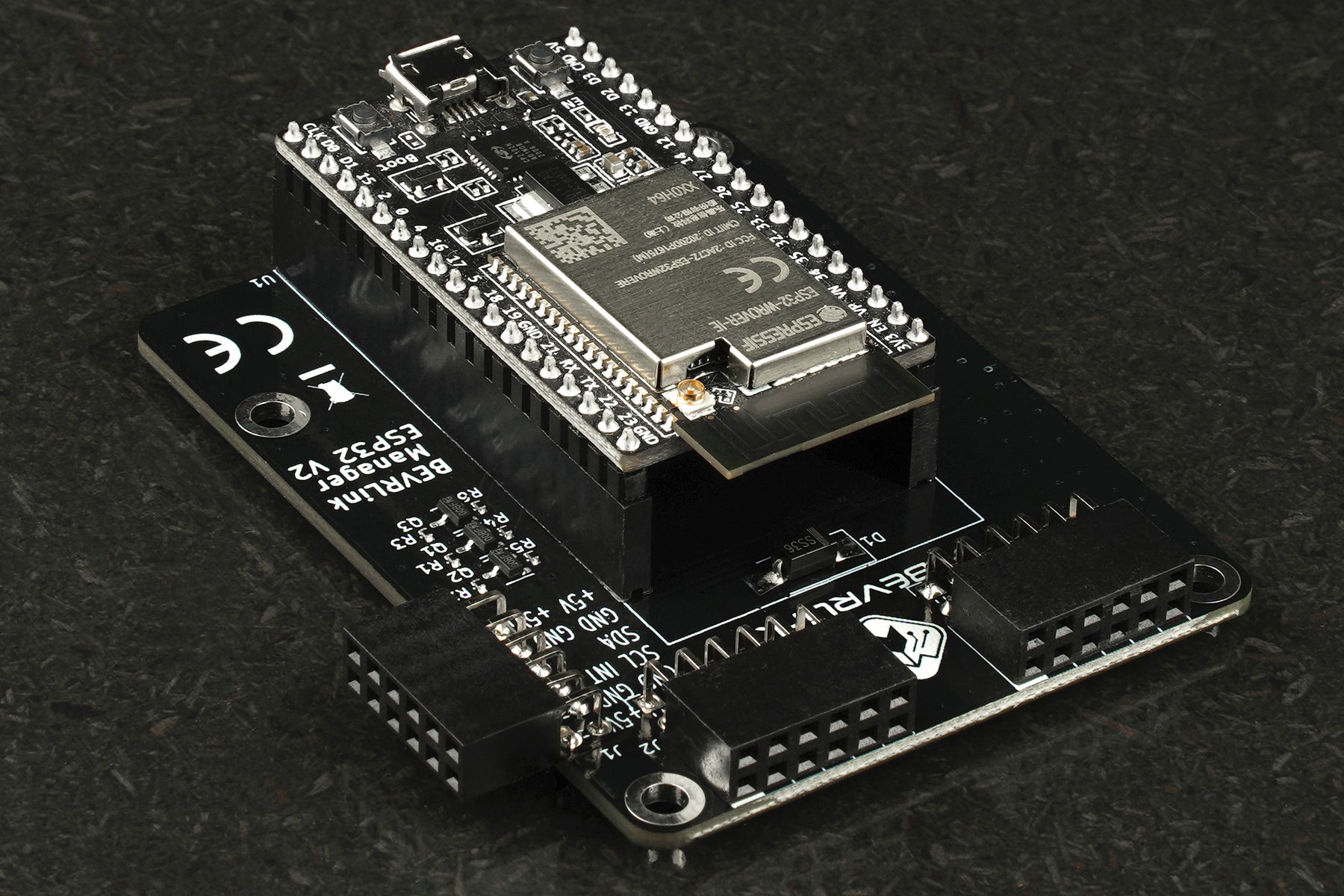

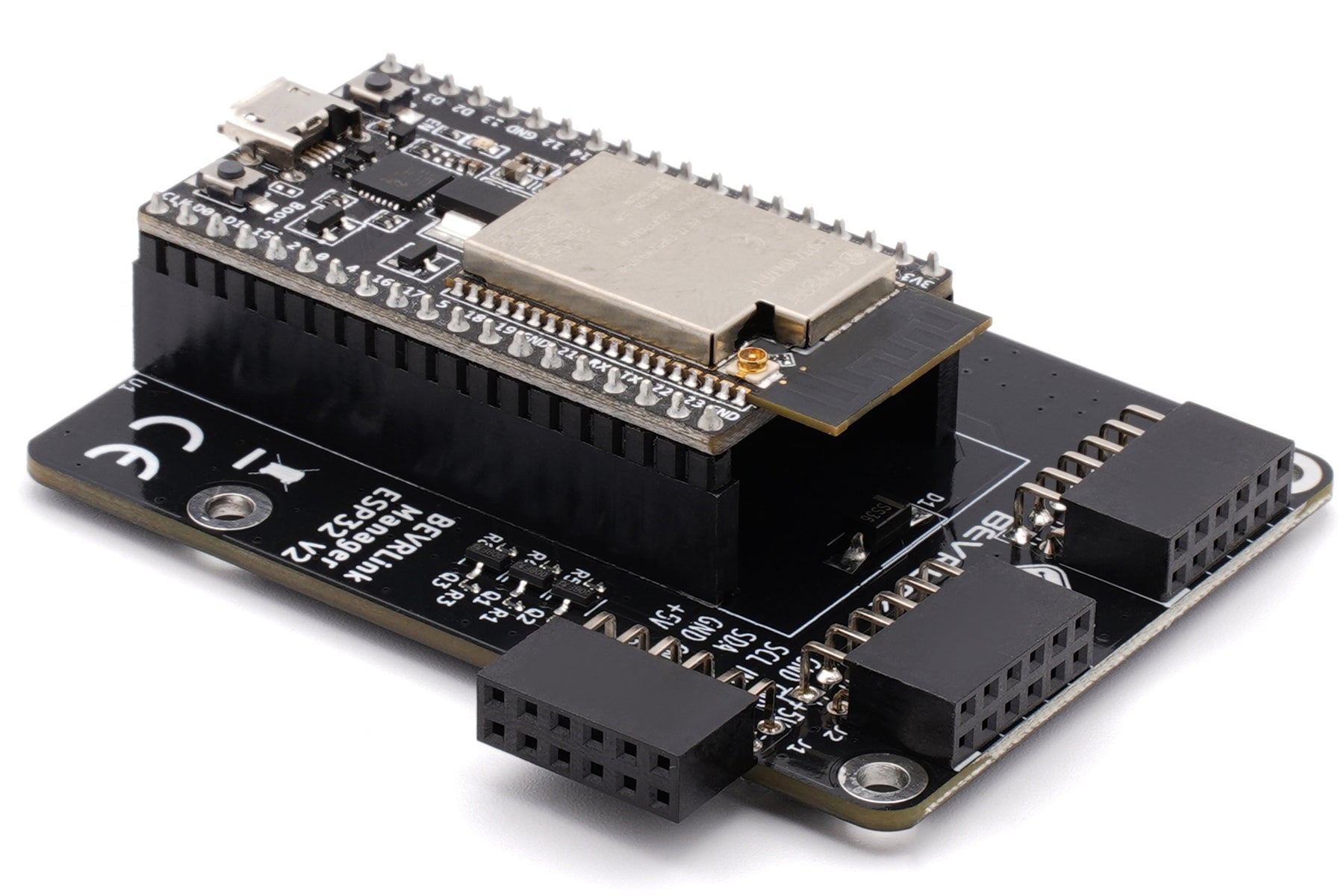

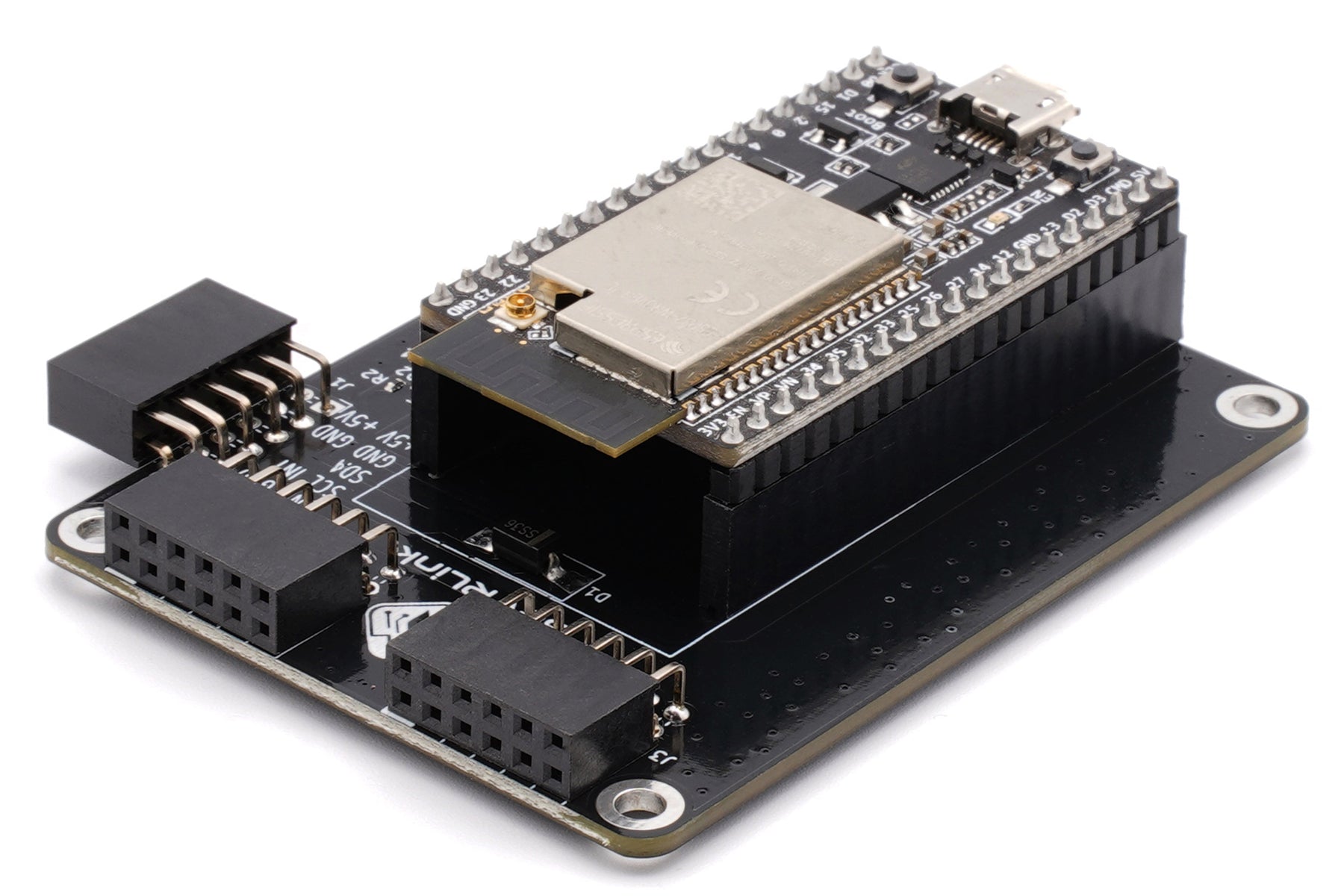

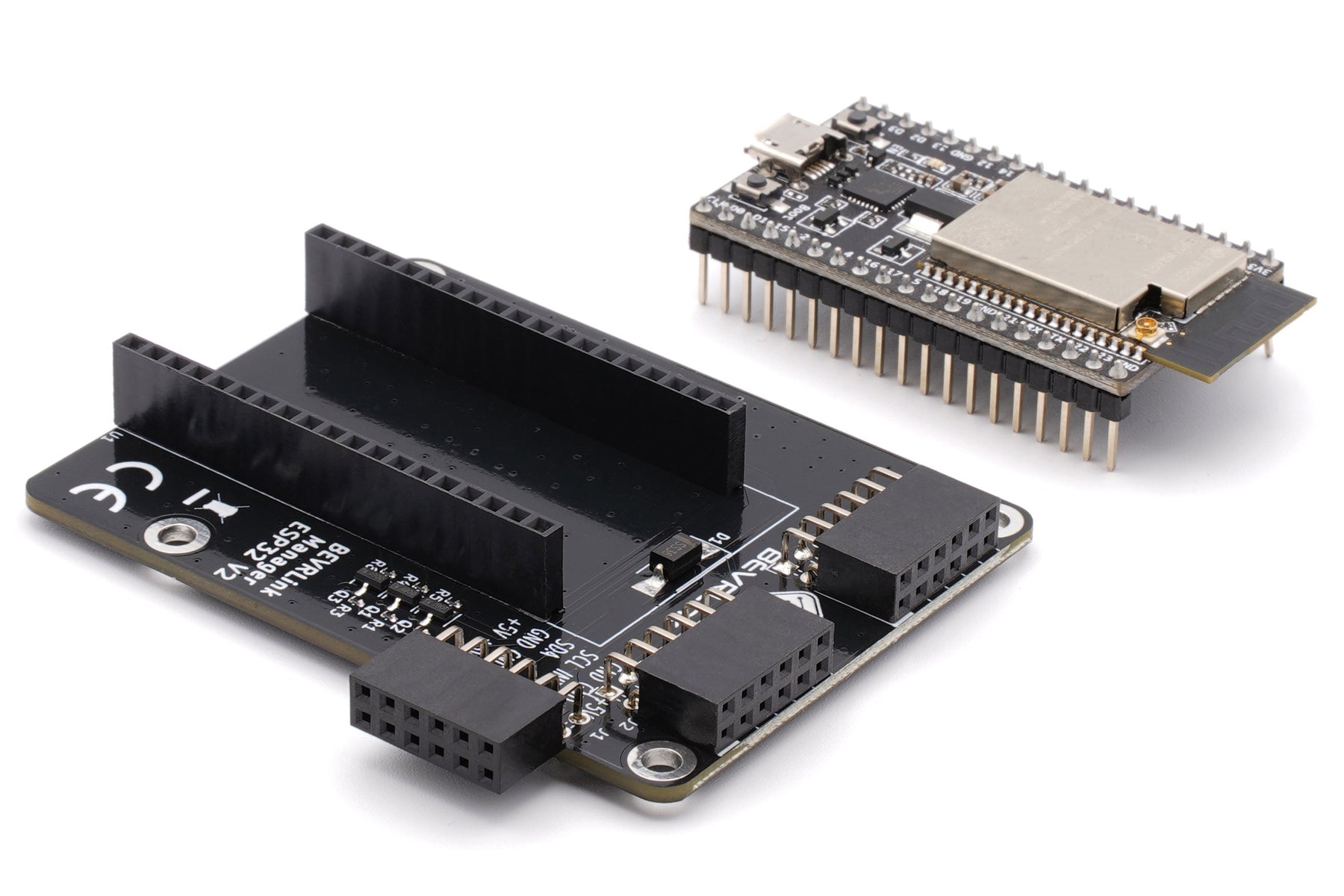

Works with DEVKIT C, NODEMCU ESP32 variants

Features
  • Quick connection, no cables are needed to connect to the BEVRLink Relays
  • Good for quickly setting up test and automation systems
  • GPIO connector for extra IO
Specifications
  • Dimensions: 72mmx54mm
  • Mounting hole size: M3
Download 3D model

Overview

The BEVRLink Manager ESP32 has the following main purpose:
Quick connect and all pins are automatically connected right between the microcontroller and the Relay module. All pins will be correctly addressed.

The BEVRLink relay module provides power to the Manager board and the single-board computer, no extra cables are needed for the single-board computer.

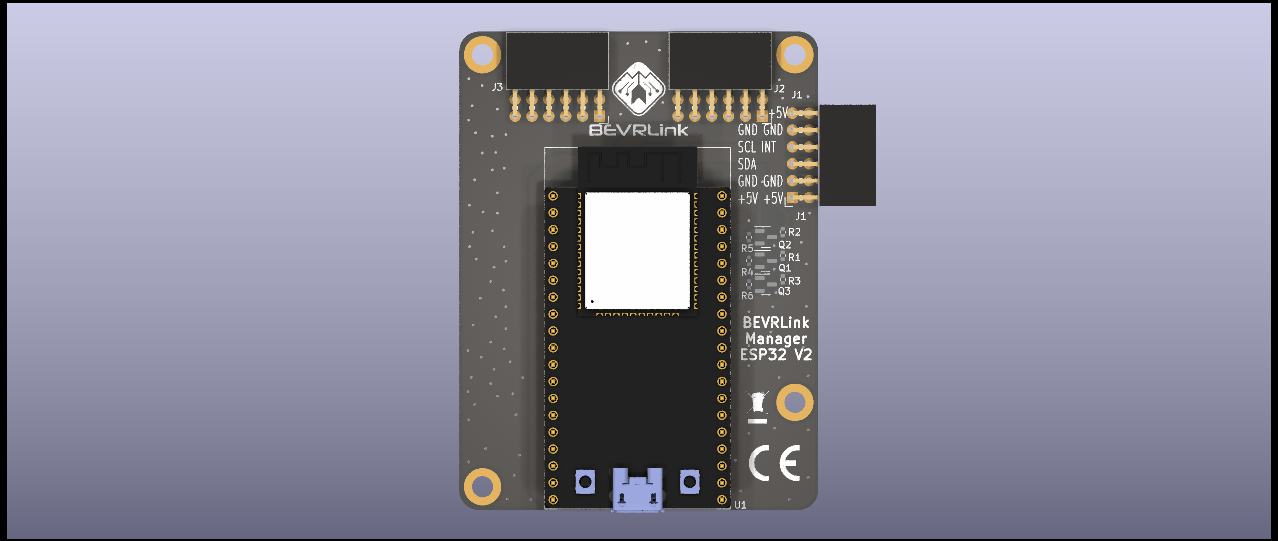

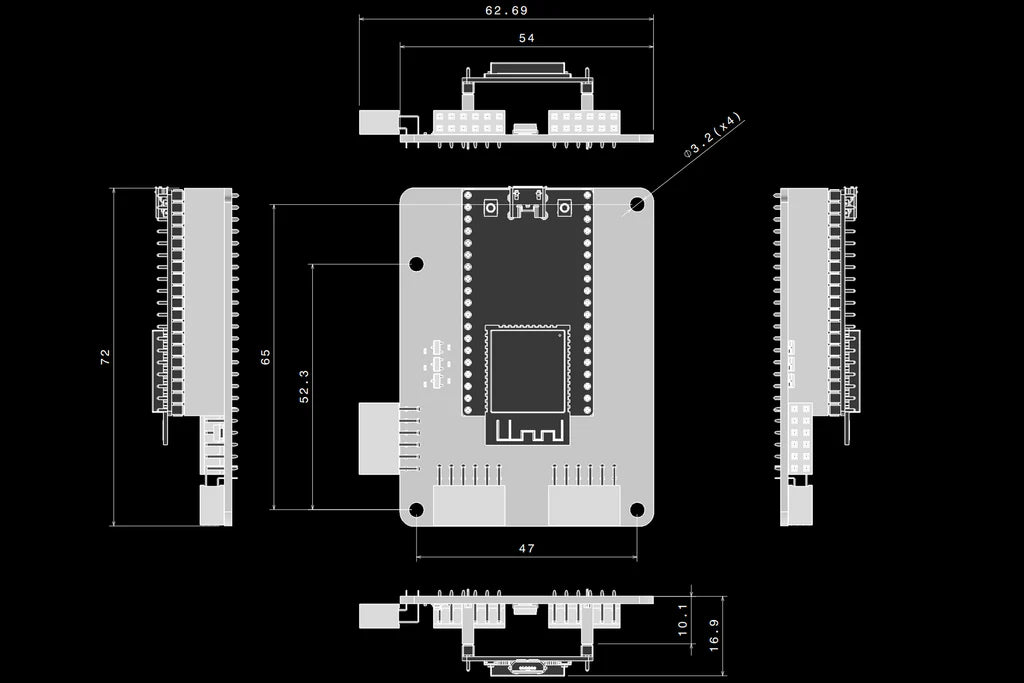

3D model / Dimensions

Connection instruction

connect to the next relay

Looking at the connector

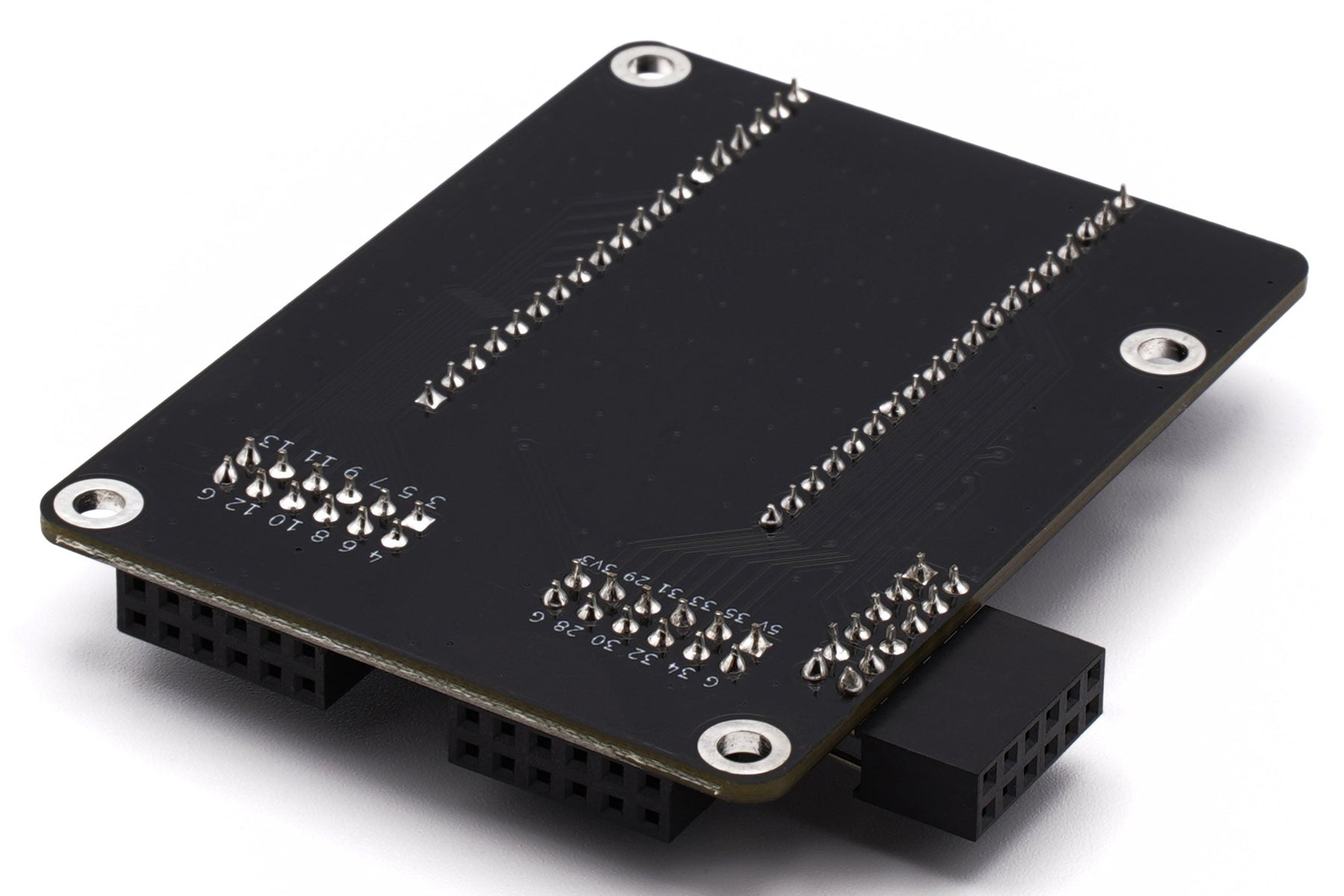

GPIO connectors

Left

Right
