€9,95
Incl. VAT
• In stock
Compatible items

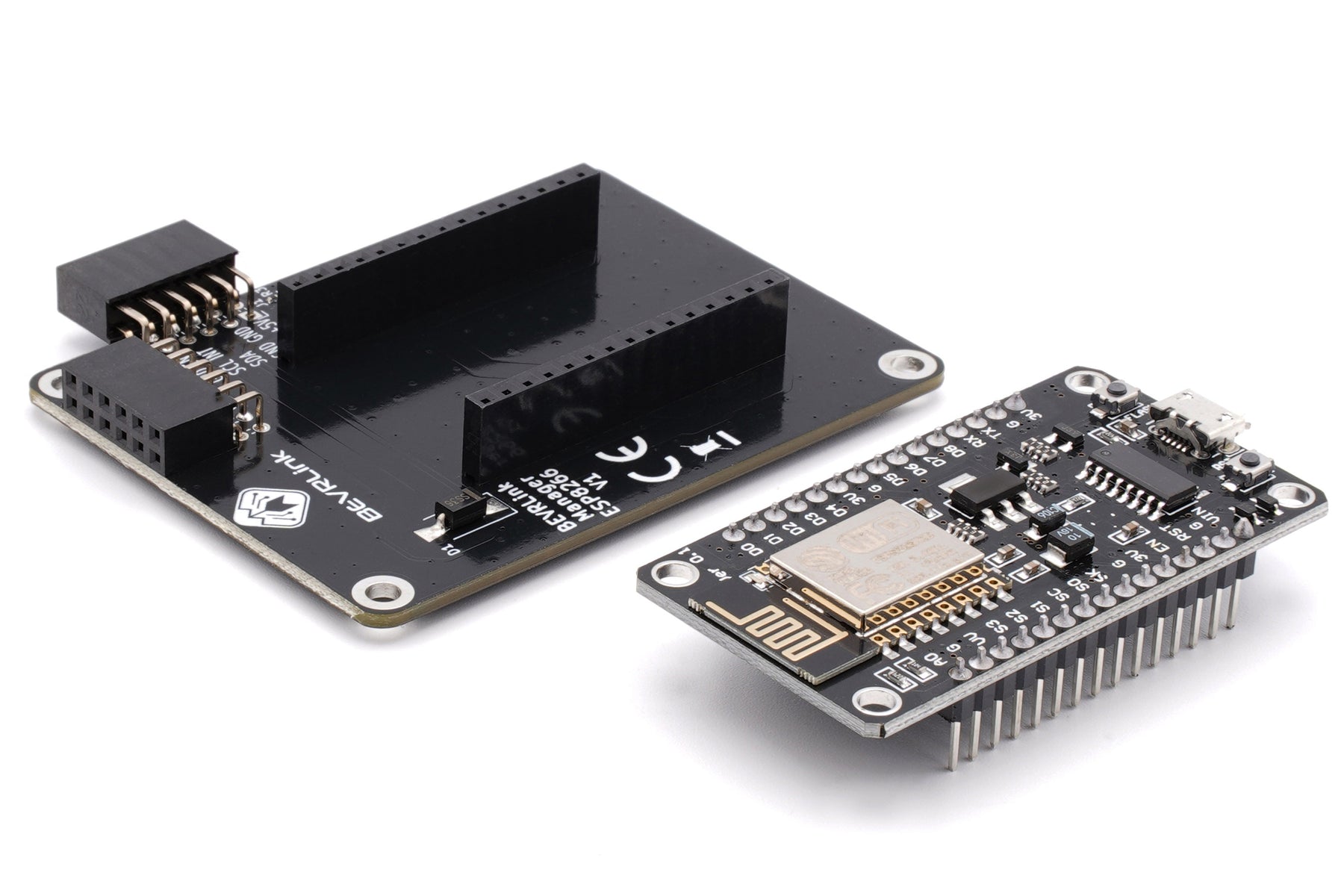

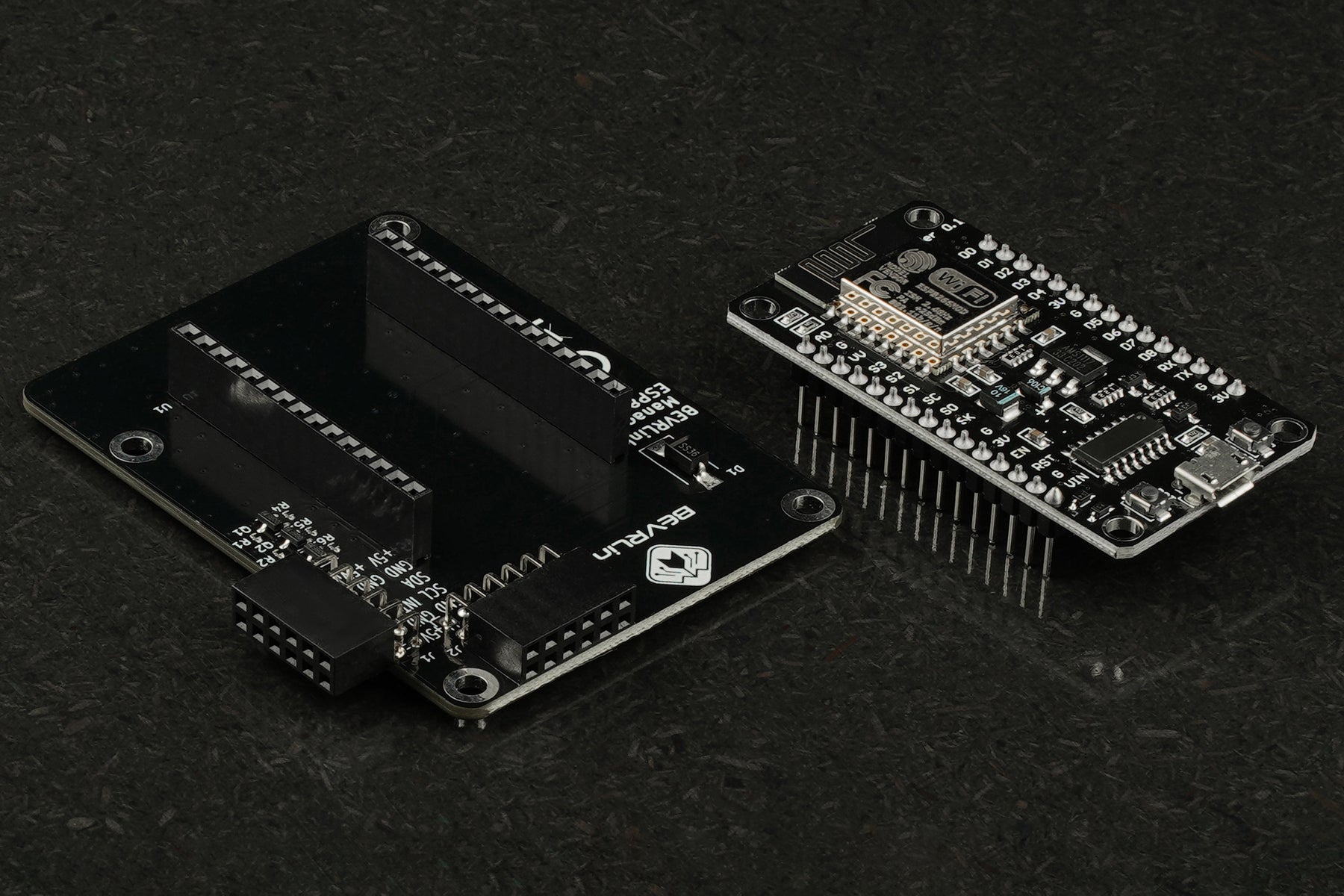

Works with NODEMCUv2 ESP8266

Features
  • Quick connection, no cables are needed to connect to the BEVRLink Relays
  • Good for quickly setting up test and automation systems
  • GPIO connector for extra IO
Specifications
  • Dimensions: 72mmx54mm
  • Mounting hole size: M3
Download 3D model

Overview

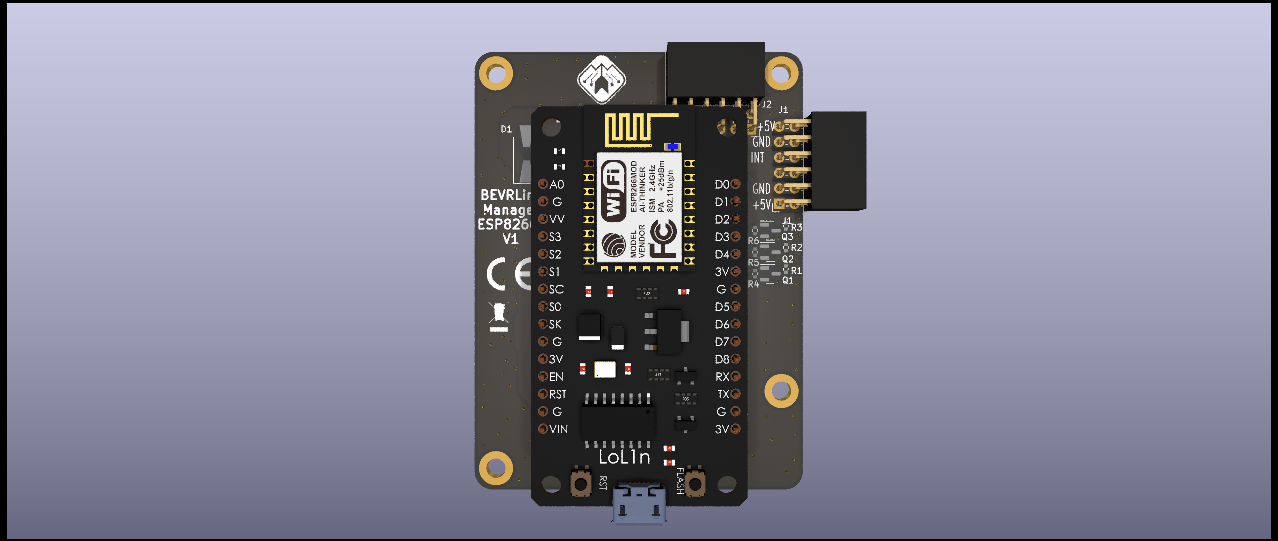

The BEVRLink Manager ESP8266 V1 has the following main purpose:

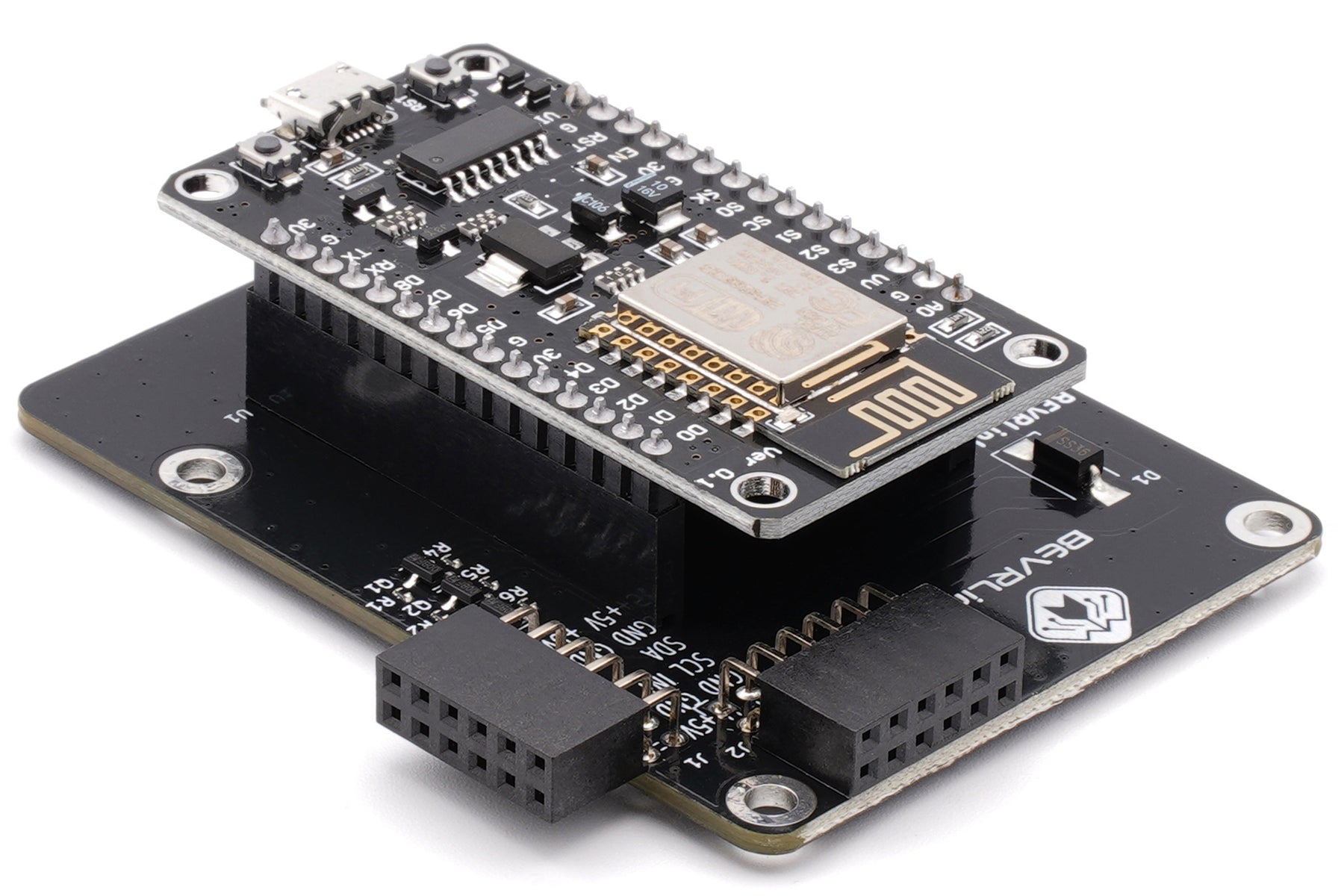

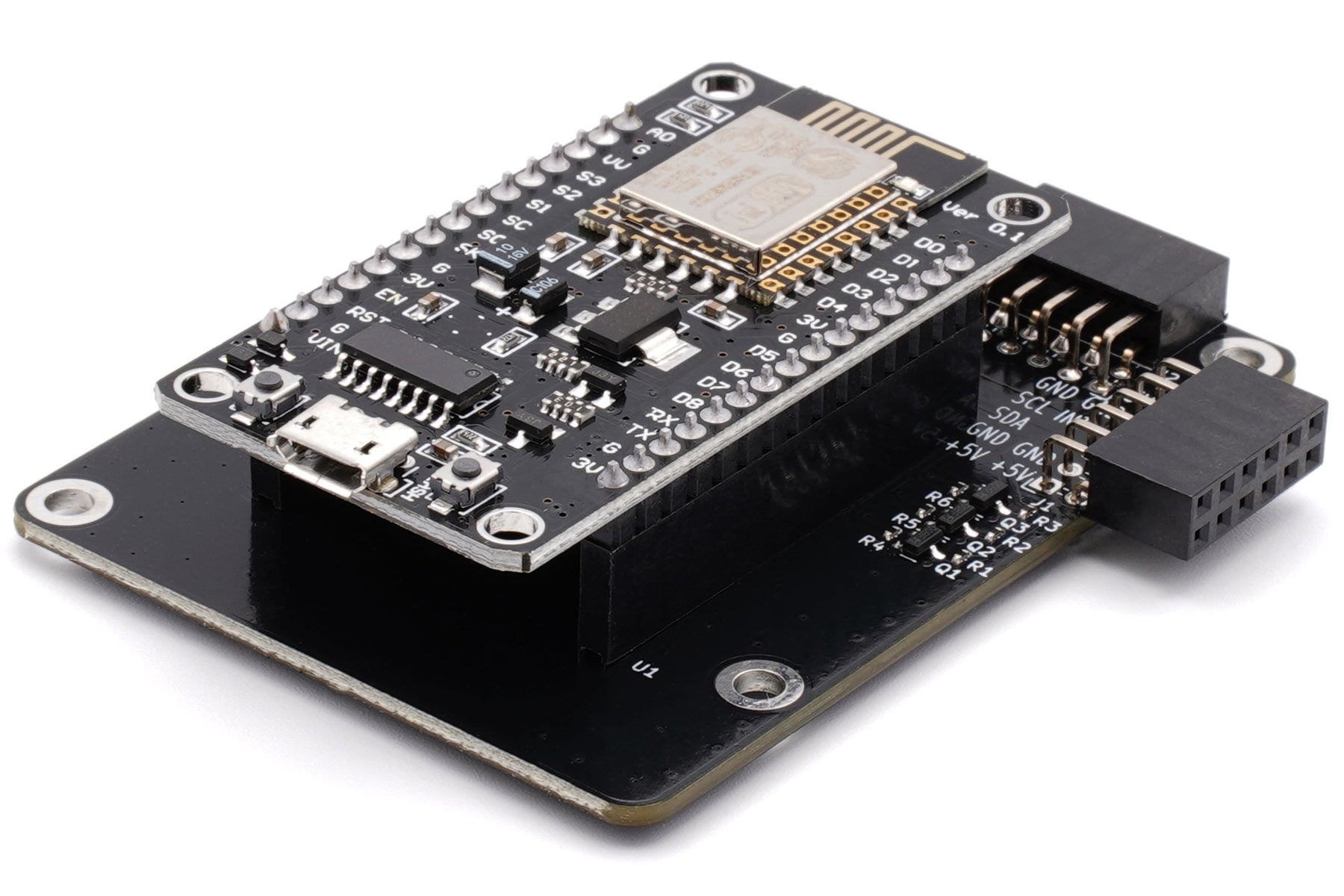

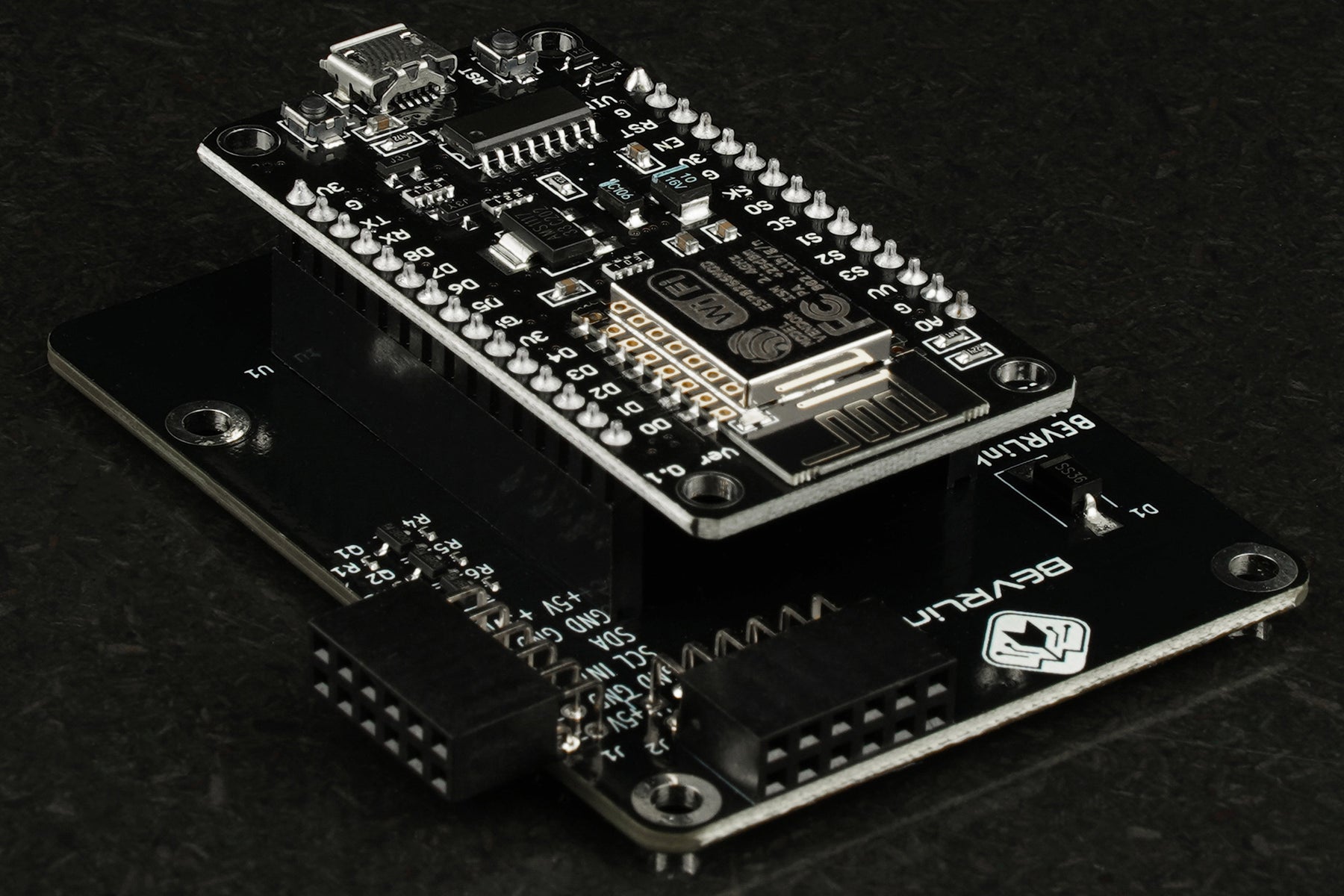

Quick connect and all pins are automatically connected right between the microcontroller and the Relay module. All pins will be correctly addressed.

The BEVRLink relay module provides power to the Manager board and the microcontroller, no extra cables are needed for the microcontroller.

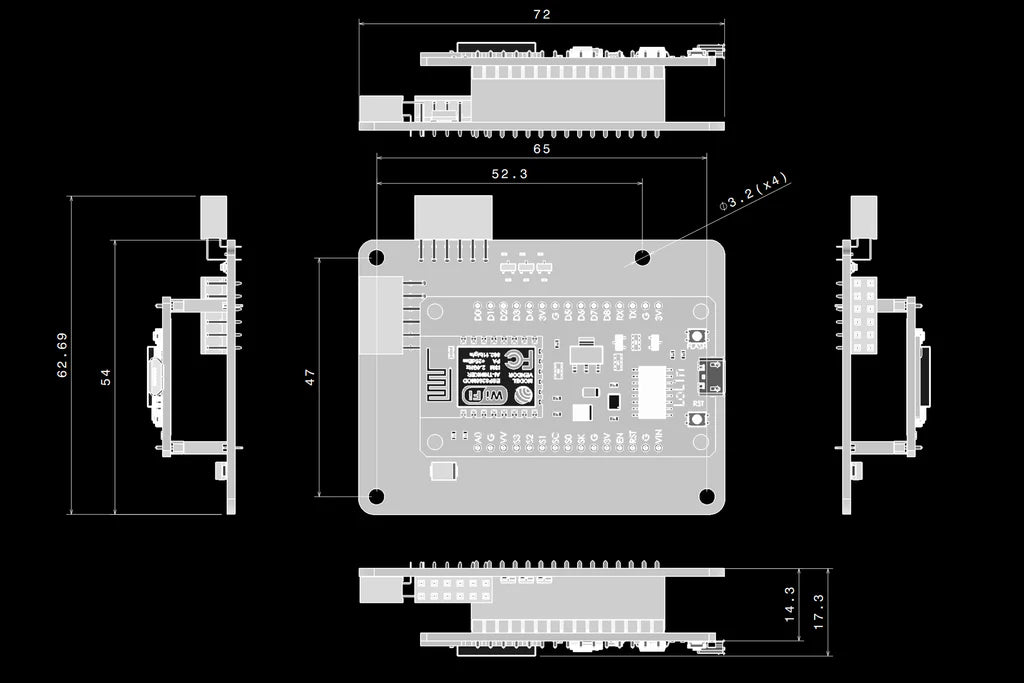

3D model / Dimensions

Connection instruction

connect to the next relay

Looking at the connector

GPIO connectors
