Sale price€13,69
Incl. VAT
• In stock
Compatible items

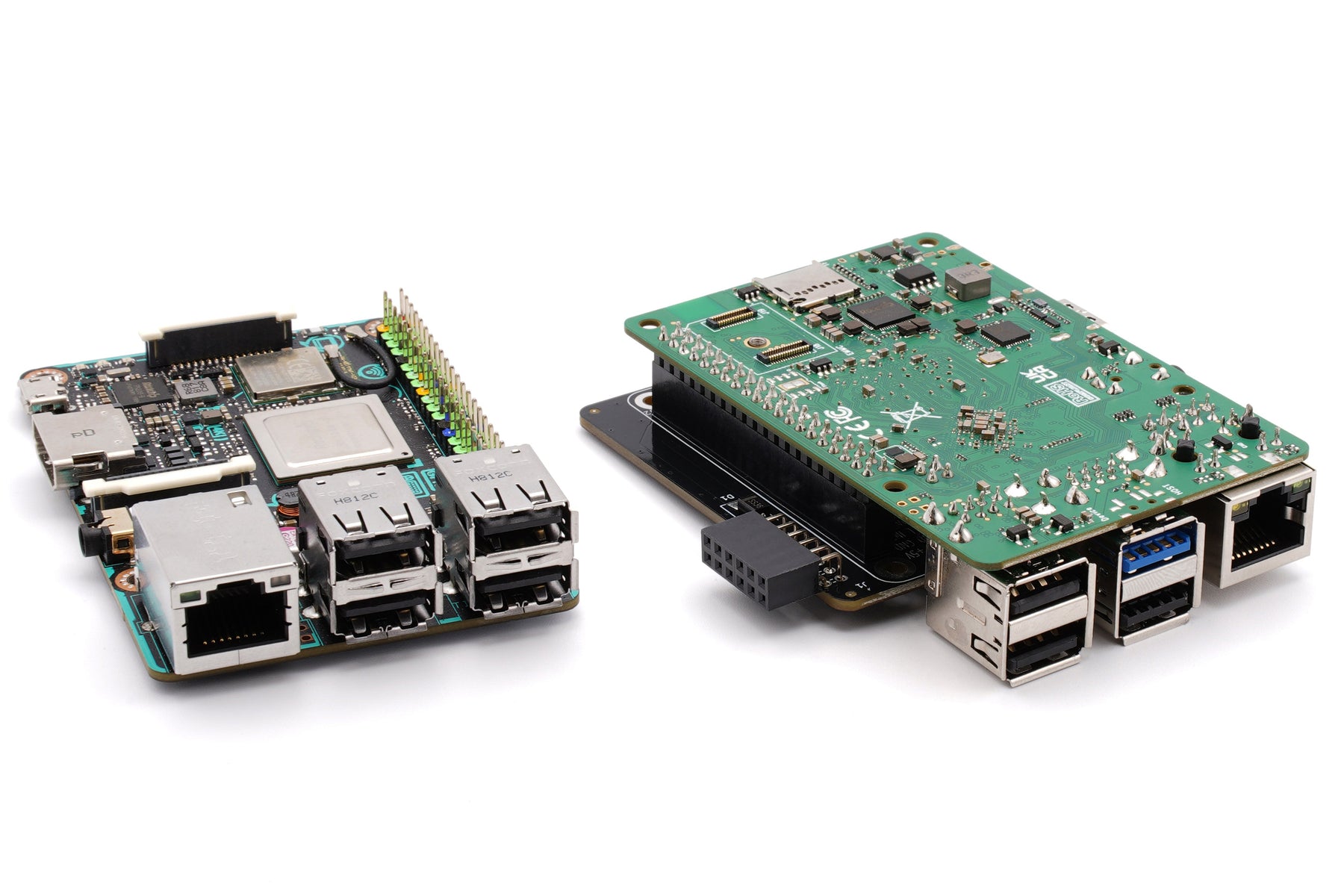

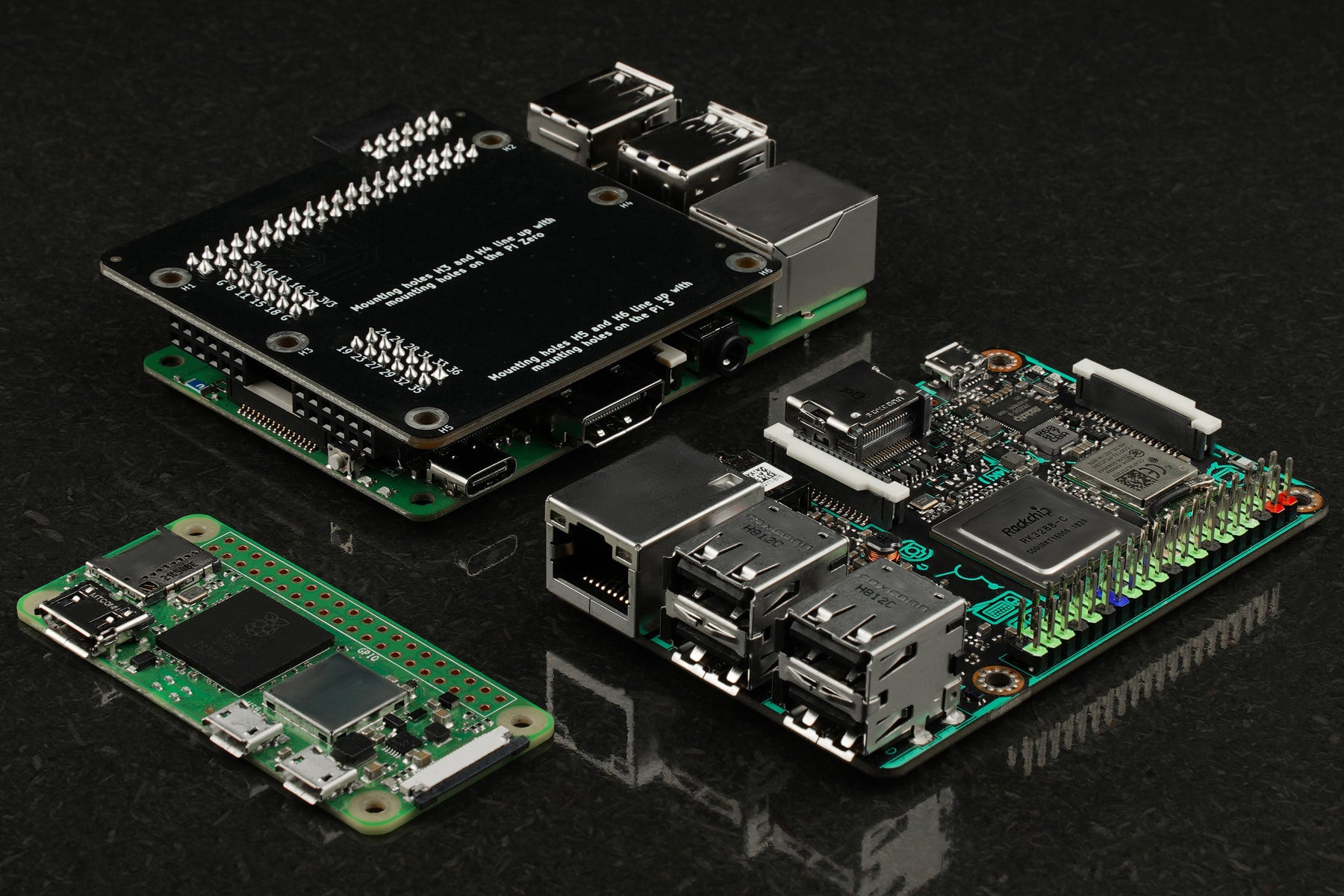

Works with most SBCs with a Raspberry Pi lineup, Raspberry Pi Zero lineup Radxa ROCK lineup, Asus Tinker etc using the same HAT pinout as Raspberry Pi.

Features
  • Quick connection, no cables are needed to connect to the BEVRLink Relays
  • Good for quickly setting up test and automation systems
  • GPIO connector for extra IO
Specifications
  • Dimension: 64.77mmx66.27mm
  • Mounting hole size: M3

Overview

The BEVRLink Manager HAT has the following main purpose:
Quick connect and all pins are automatically connected right between the microcontroller and the Relay module. All pins will be correctly addressed.

The BEVRLink module provides power to the Manager board and the single-board computer, no extra cables are needed for the single-board computer.

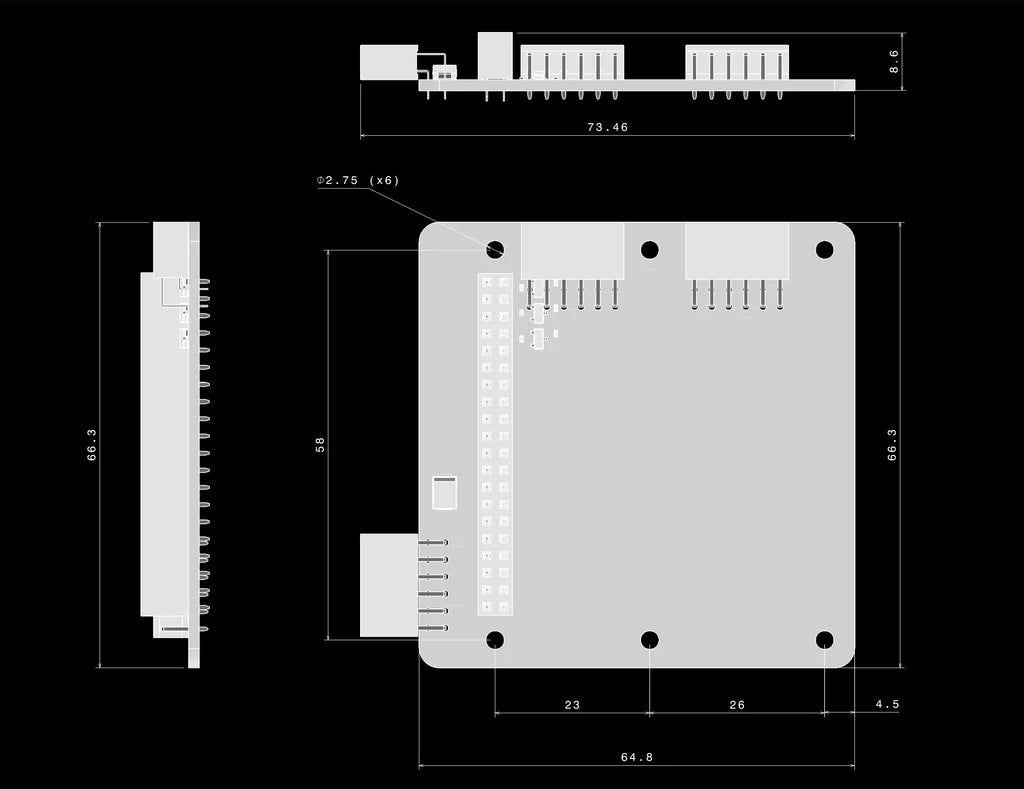

3D model / Dimensions

Connection instruction

Connect to the next relay

Looking at the connector

GPIO connectors

Left

Right
