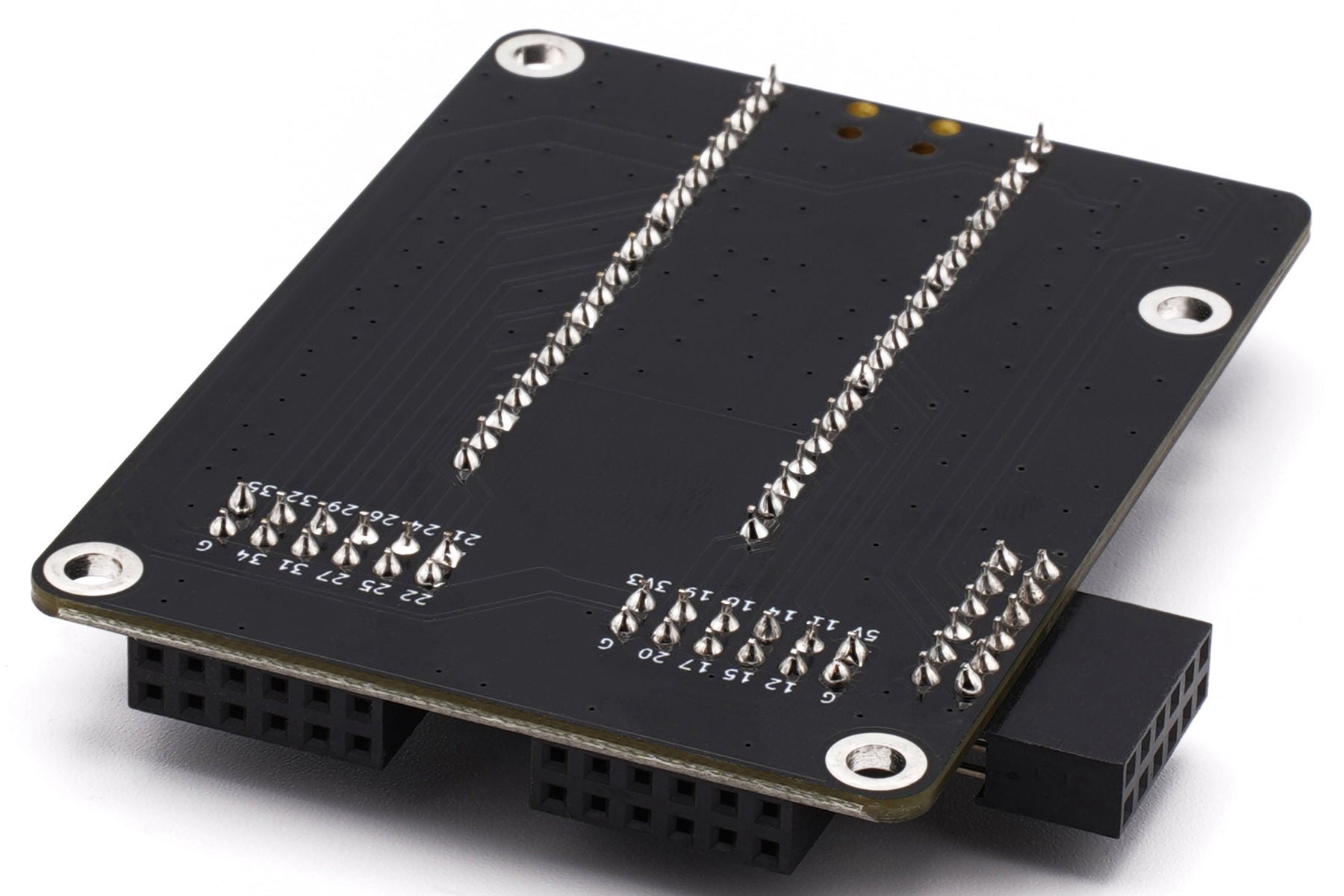

BEVRLink Manager PICO V2
BEVRLink Manager PICO V2
BEVRLink Manager PICO V2
BEVRLink Manager PICO V2
BEVRLink Manager PICO V2
BEVRLink Manager PICO V2
BEVRLink Manager PICO V2
BEVRLink Manager PICO V2

BEVRLink Manager PICO V2

€11,95
Incl. VAT
• In stock
Compatible items

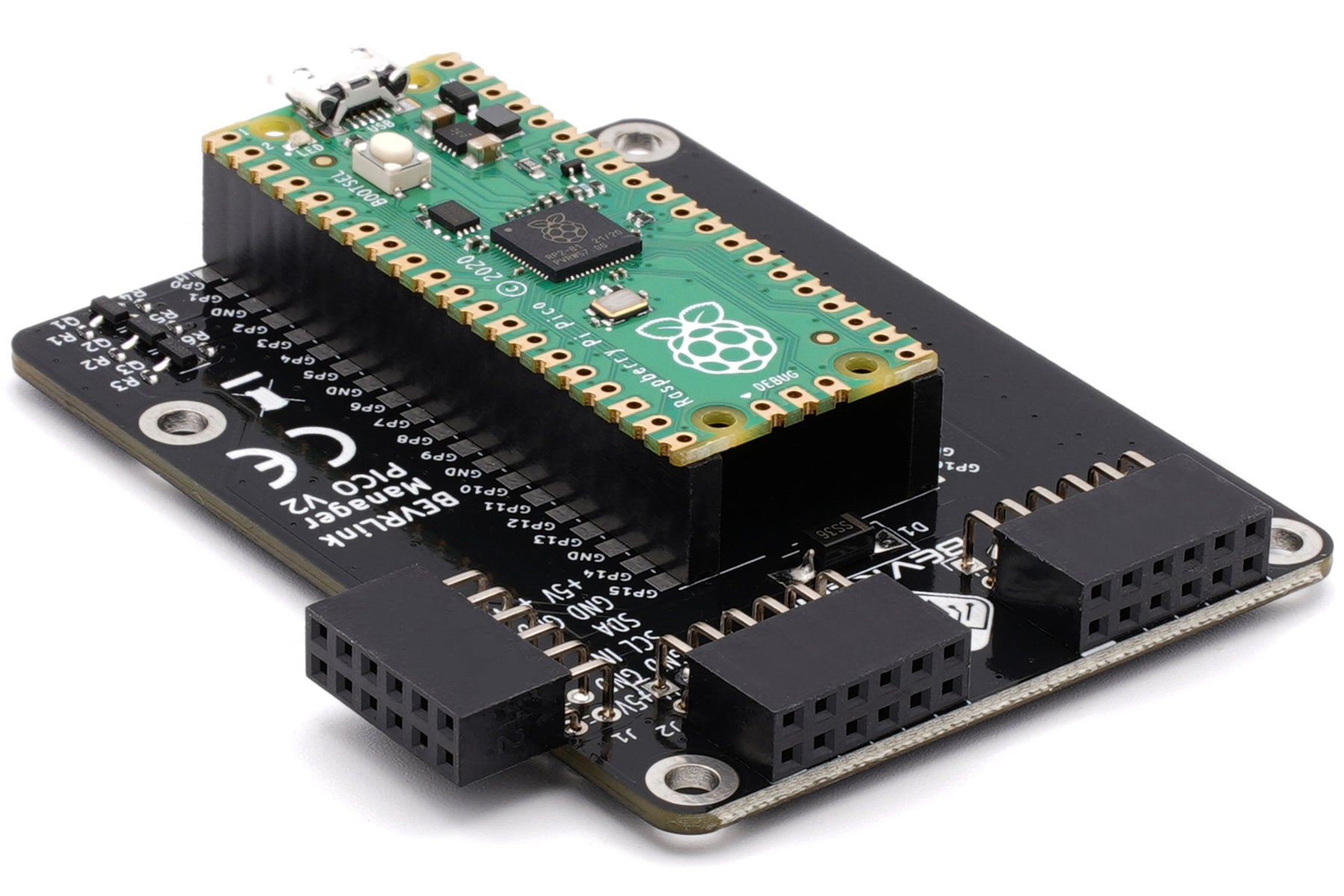

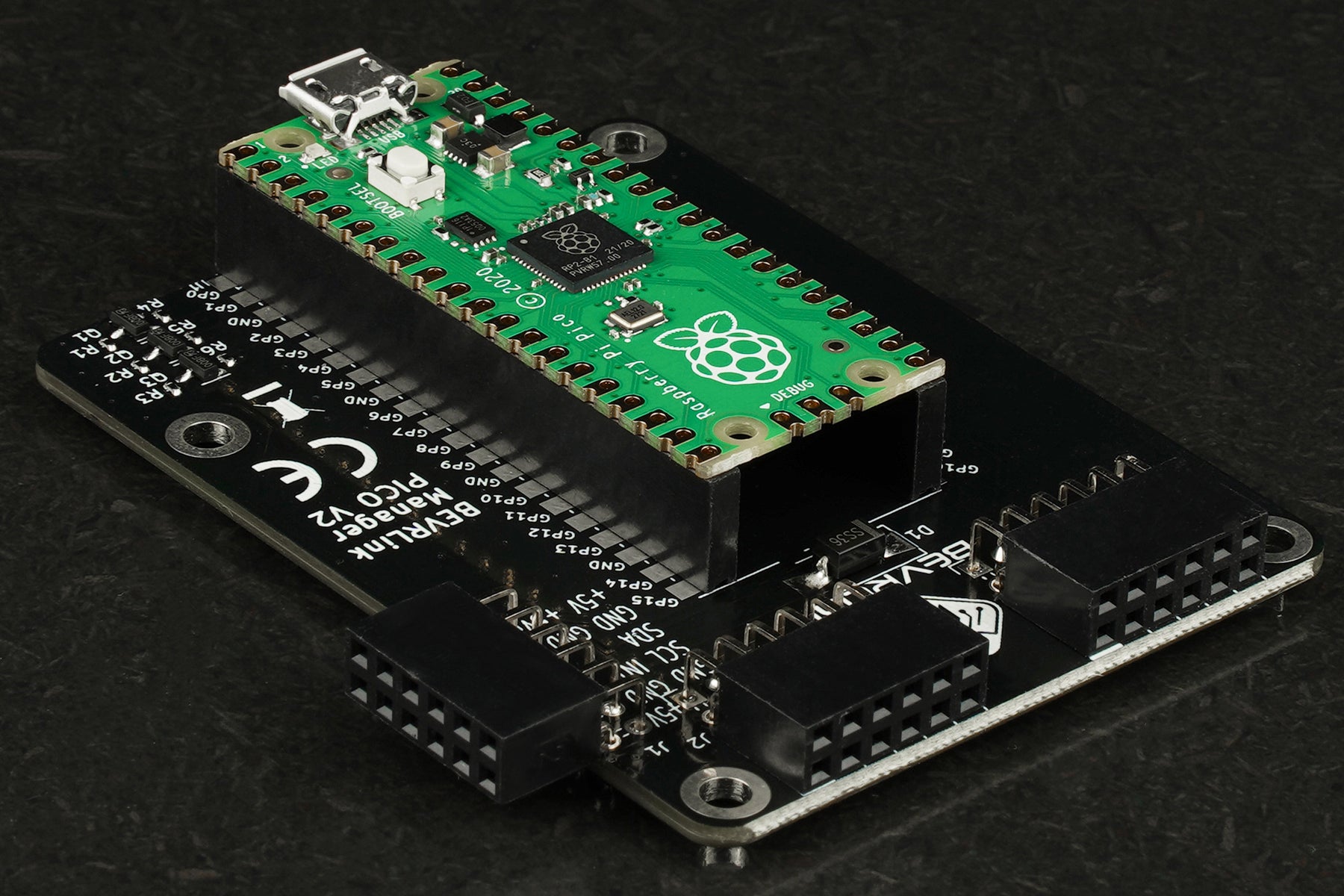

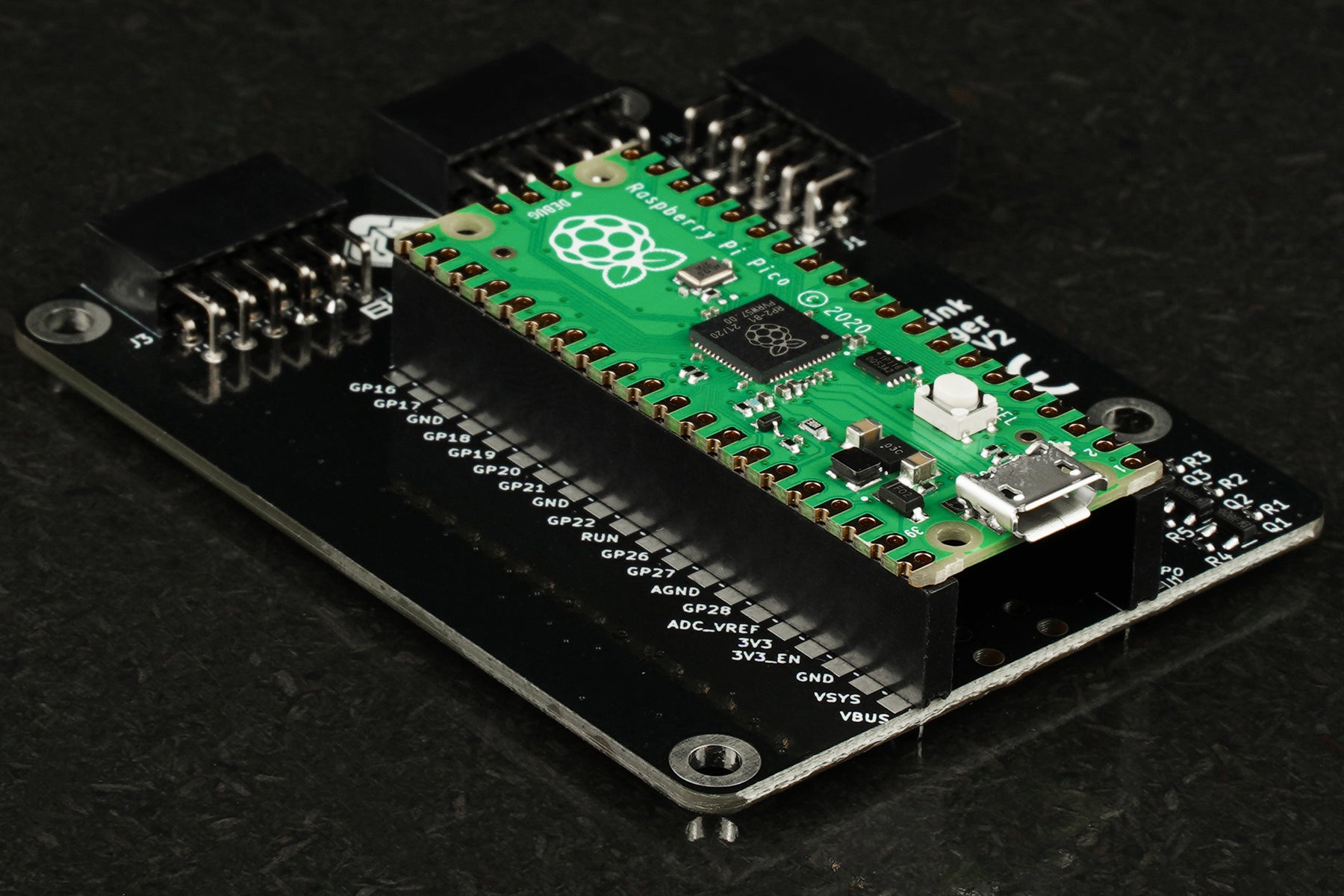

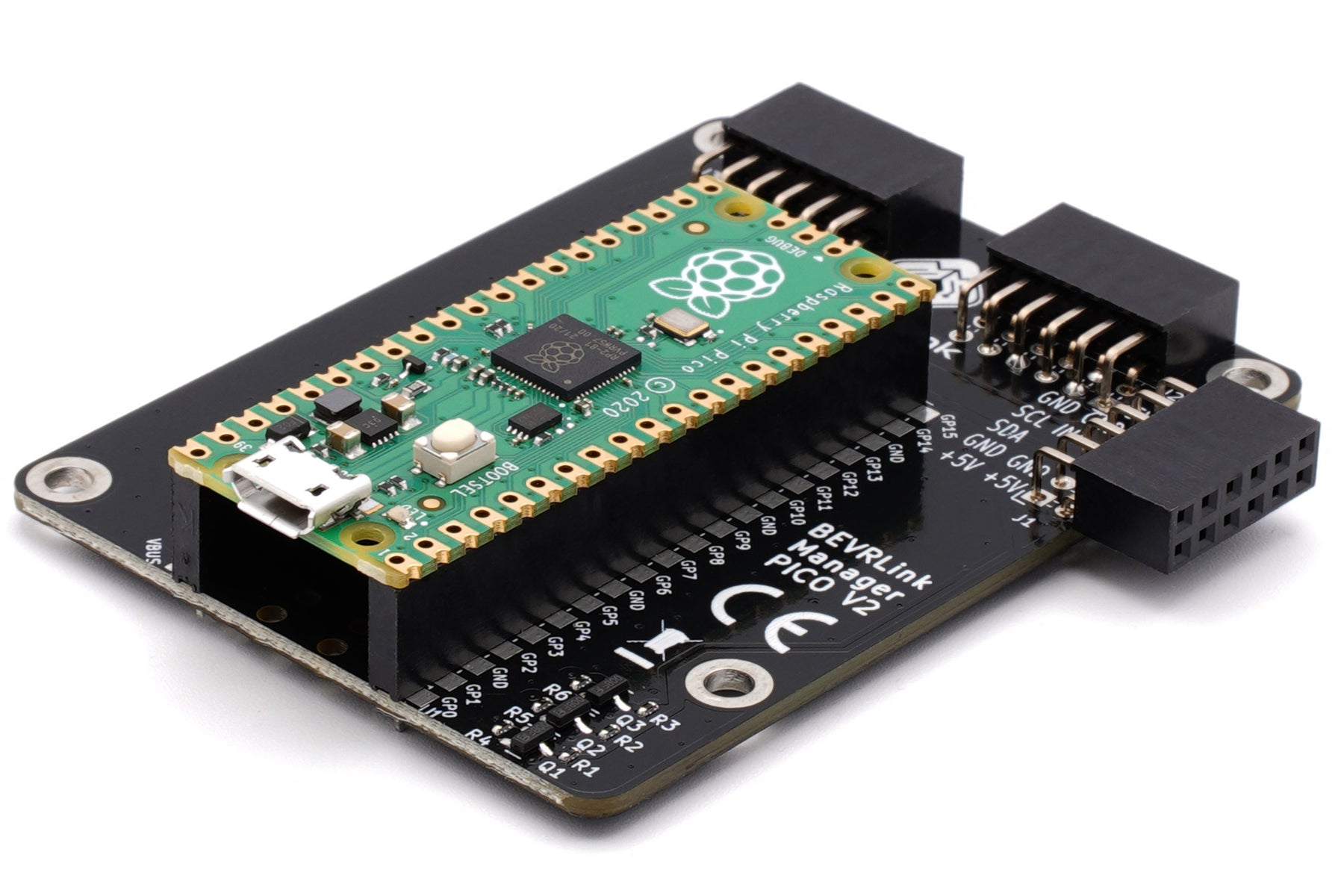

Works with Raspberry Pi Pico & Raspberry Pi Pico W.

Features
  • Quick connection, no cables are needed to connect to the BEVRLink Relays
  • Good for quickly setting up test and automation systems
  • GPIO connector for extra IO
Specifications
  • Dimensions: 72mmx54mm
  • Mounting hole size: M3
Download 3D model

Overview

The BEVRLink Manager PICO V2 has the following main purpose:
Quick connect and all pins are automatically connected right between the microcontroller and the Relay module. All pins will be correctly addressed.

The BEVRLink relay module provides power to the Manager board and the single-board computer, no extra cables are needed for the single-board computer.

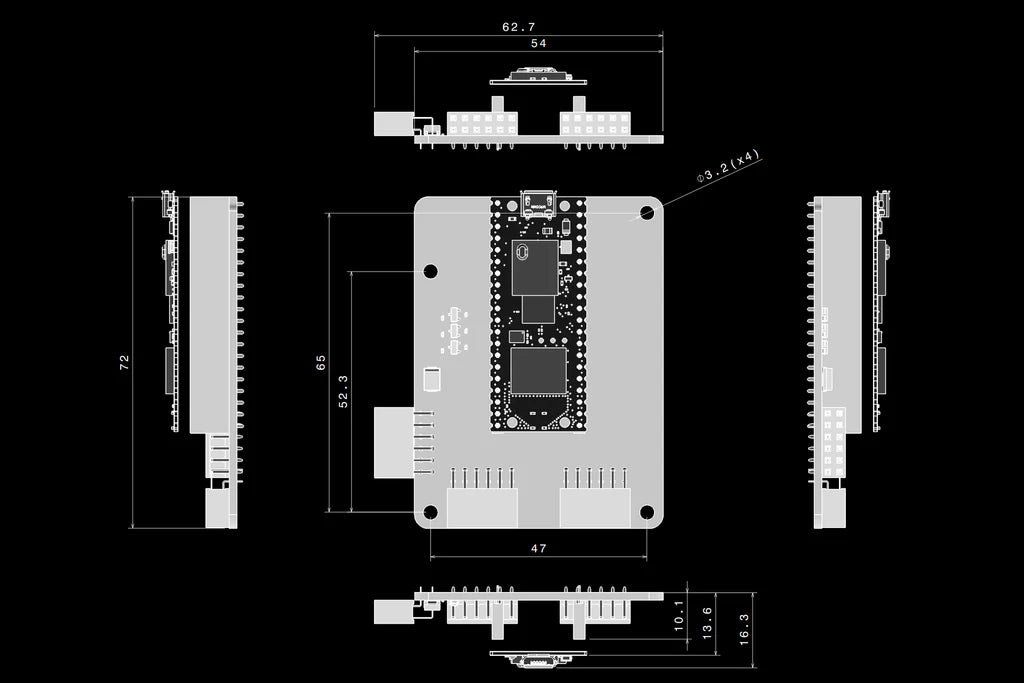

3D model / Dimensions

Connection instruction

connect to the next relay

Looking at the connector

GPIO connectors

Left

Right
