€24,95
Incl. VAT

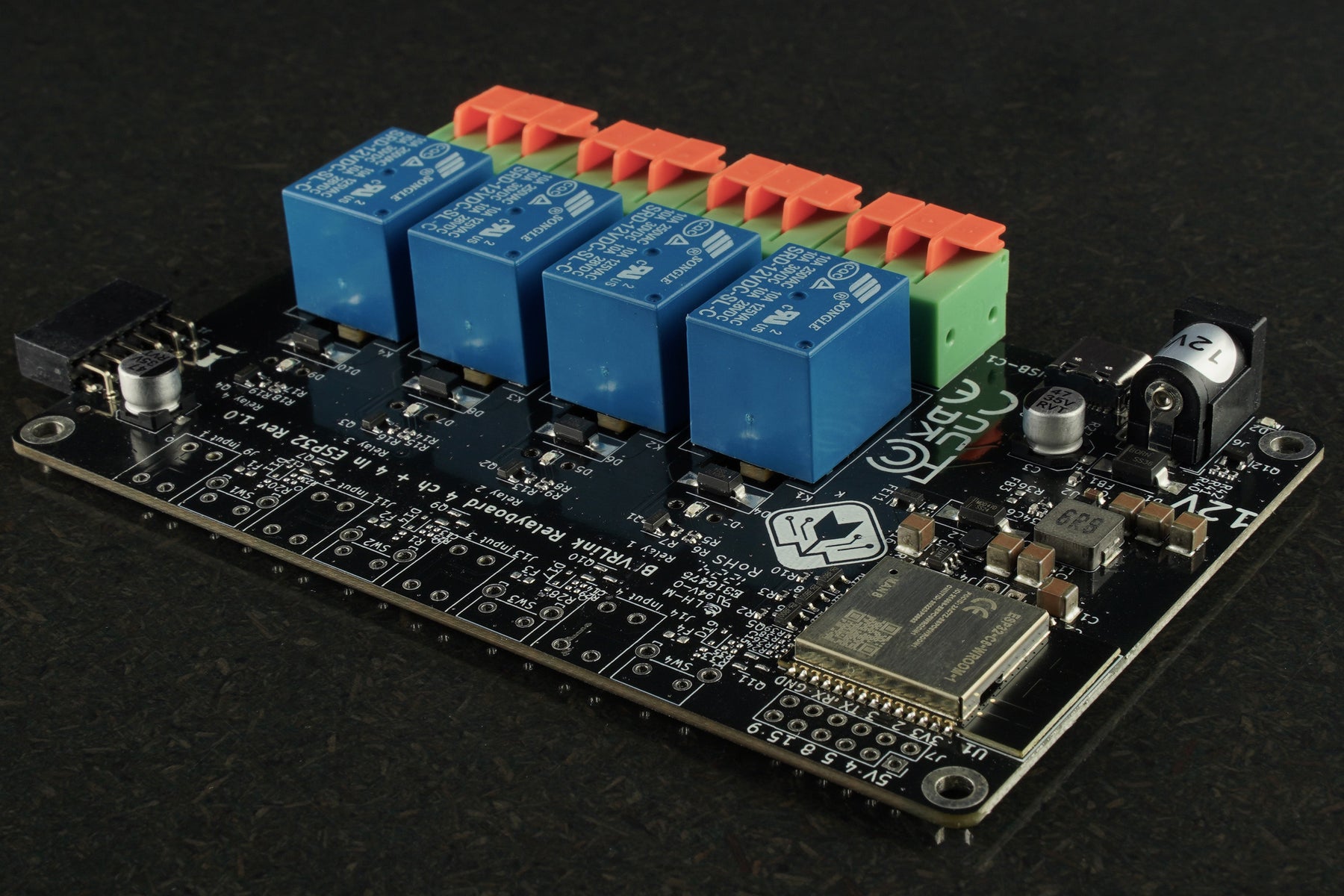

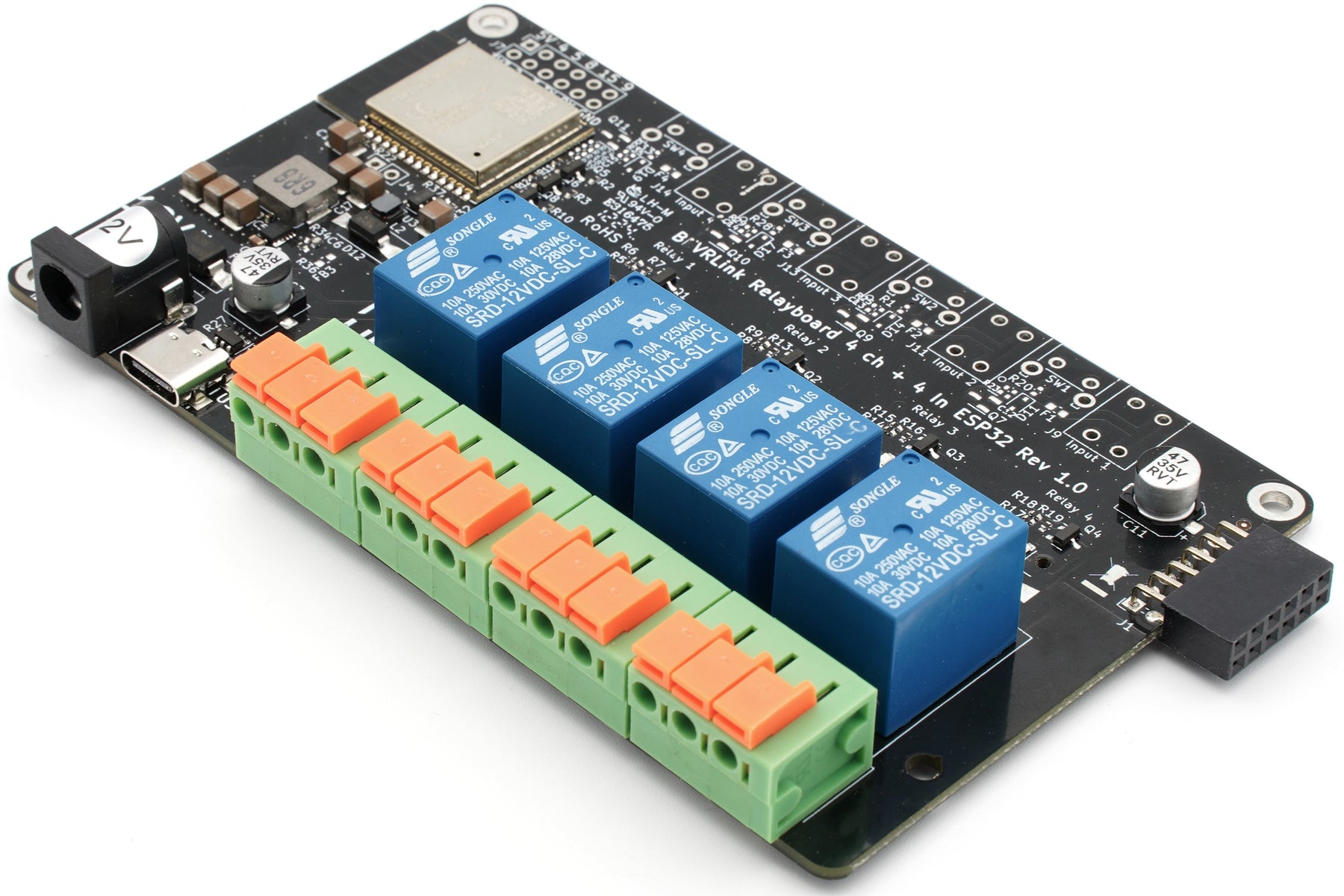

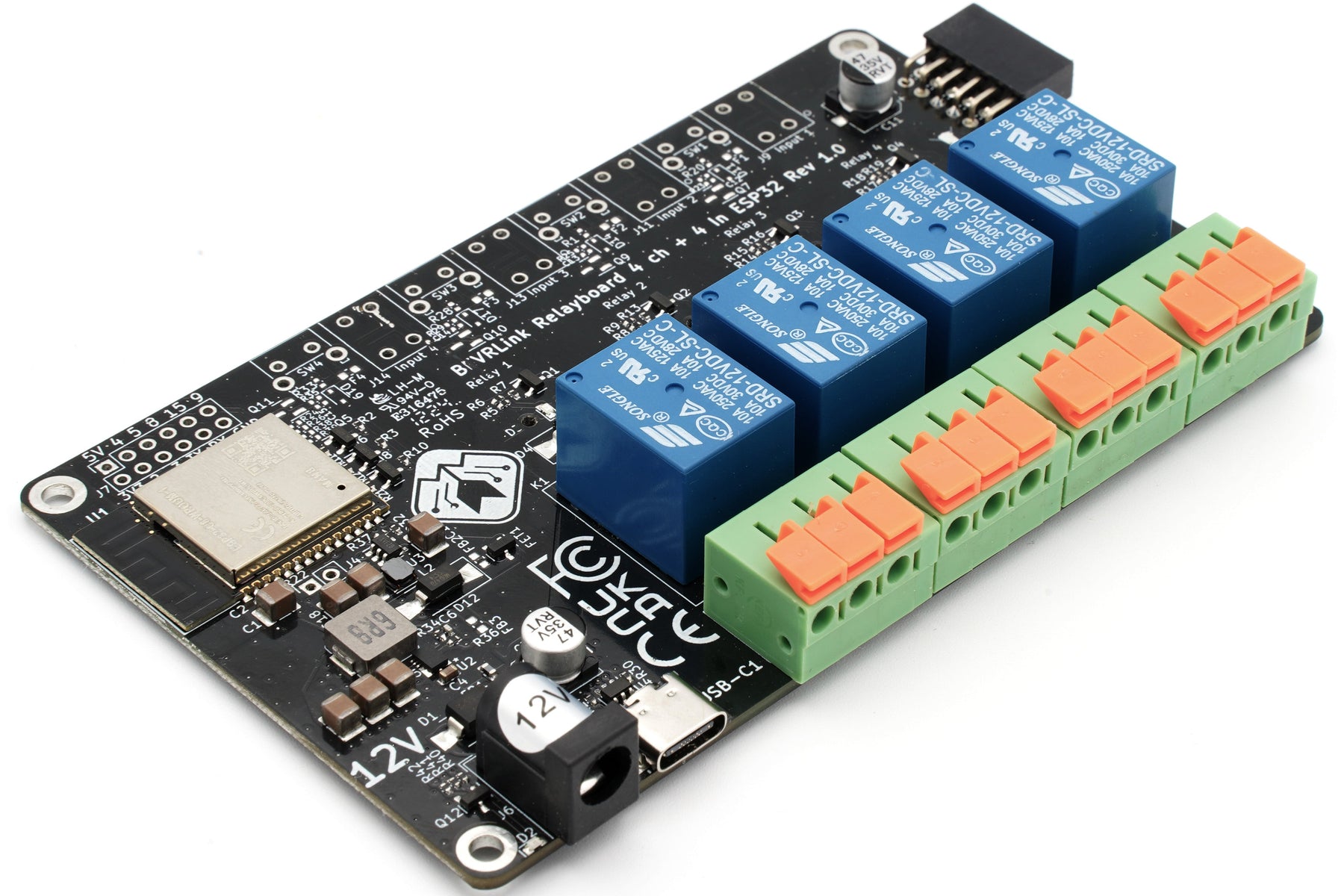

EAN: 7350001161815 The BEVRLink Relay 4 CH ESP32 is a robust and adaptable solution for diverse automation and control needs. Featuring the ESP32-C6 module, making it perfect for hobbyists and professionals alike.
Buy on Amazon
Specifications
  • Power supply voltage: 12V/2A
  • Expansion connector 5V/3A power
  • Relay channels: 4-ch

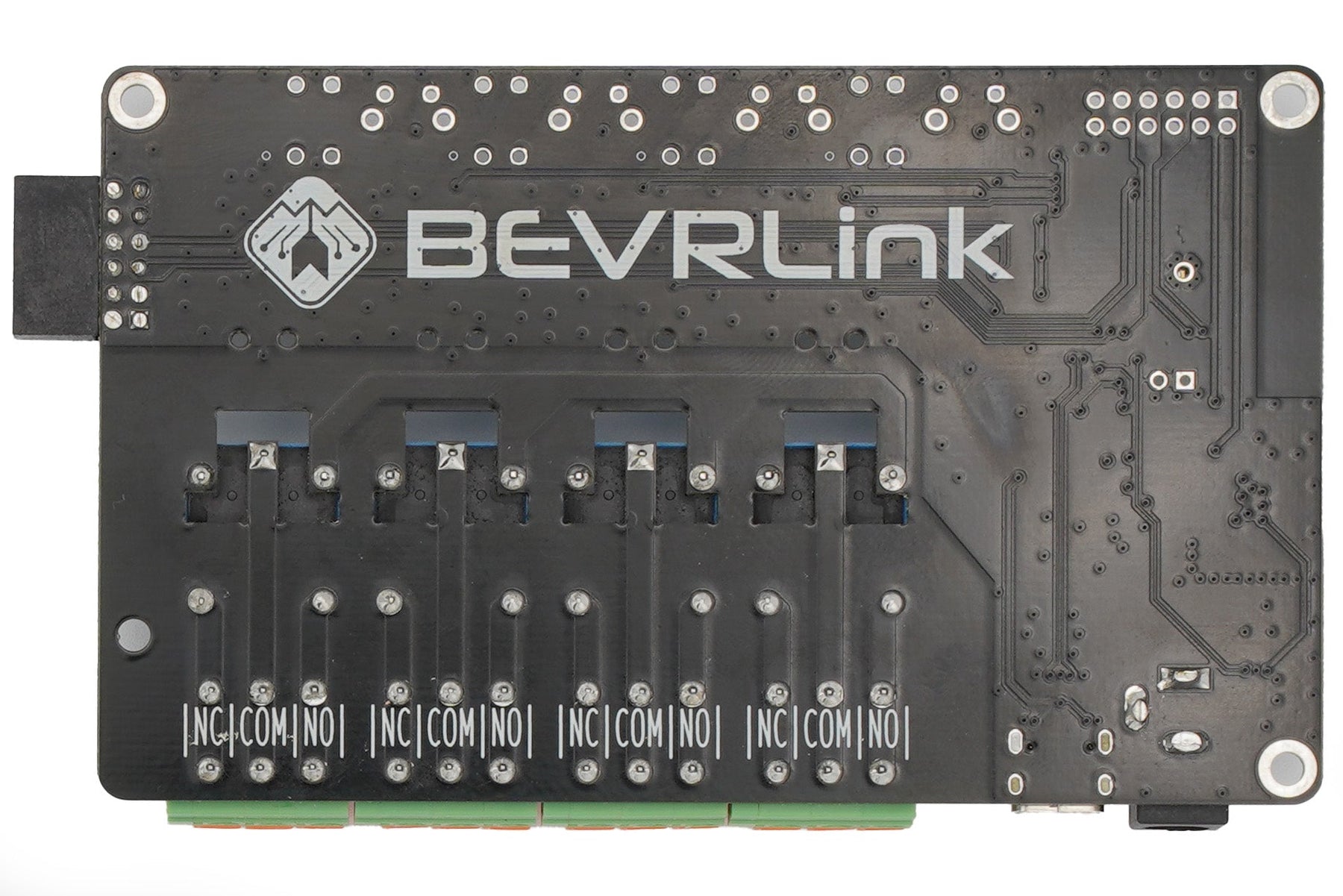

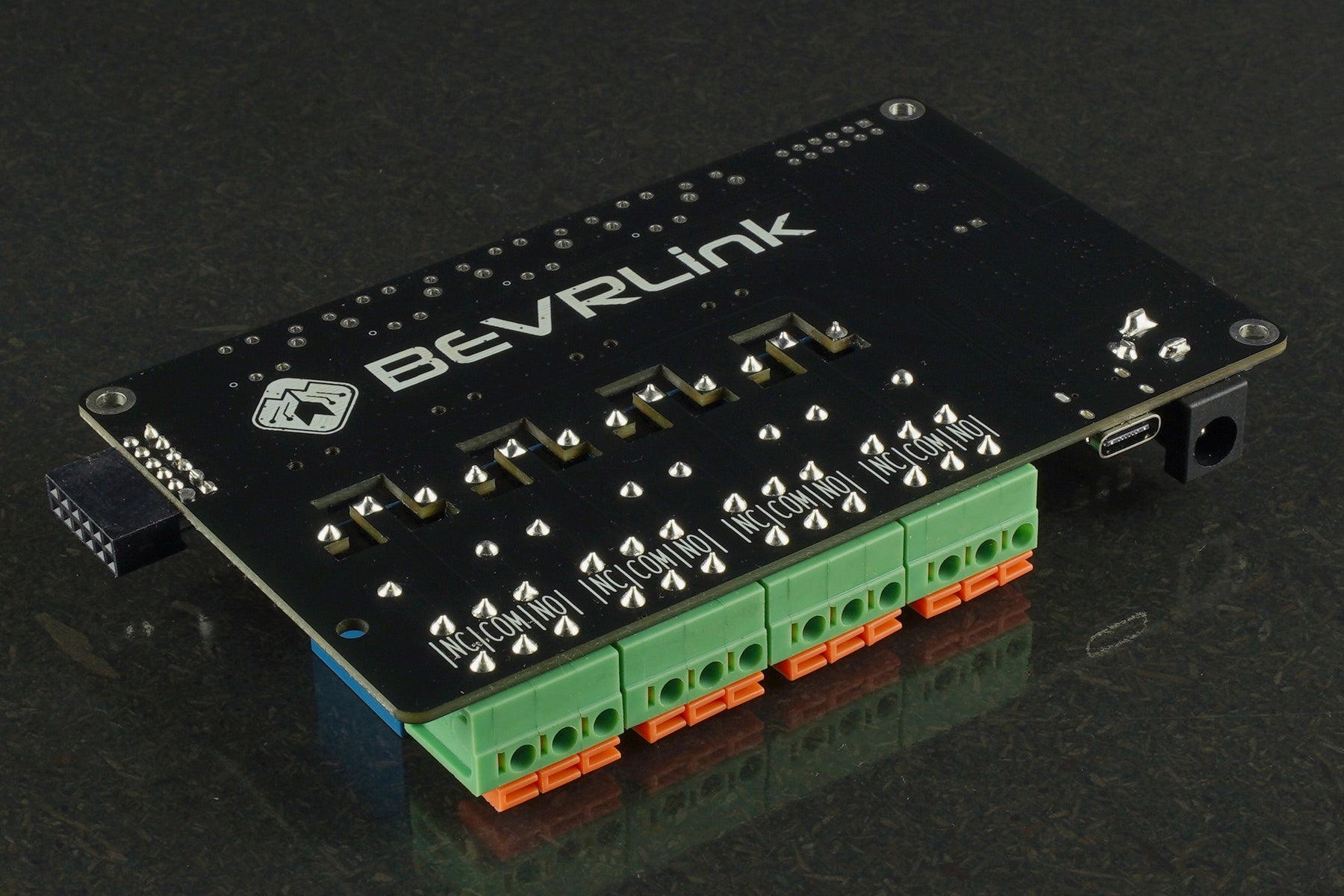

  • Contact form: SPDT-NO,NC
  • Connector: Spring clamp terminal block
  • Dimension: 118.87 mm x 72 mm
  • Mounting hole size: M3
  • 3.3A available for ESP32 + additional modules
  • BEVRLink system expansion
Compatible items

BEVRLink Power Supply 12V 2A

BEVRLink 8 Channel Relay V1 Expansion

BEVRLink 50 cm extension cable

BEVRLink 20 cm extension cable

How to get started examples

ESP32 Arduino

ESP32 ESPHome

ESP32 Zigbee

Download assets / 3D model

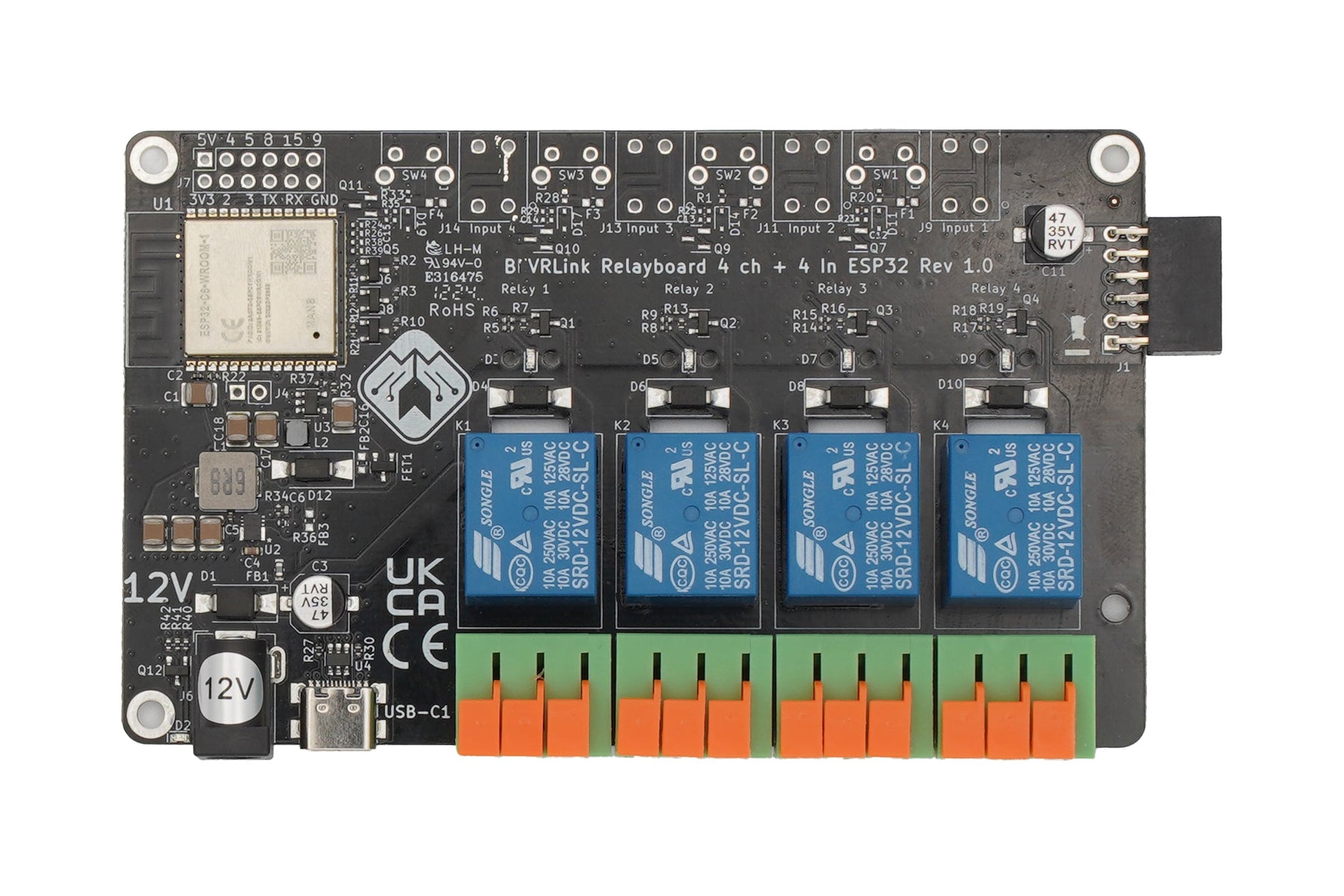

Overview

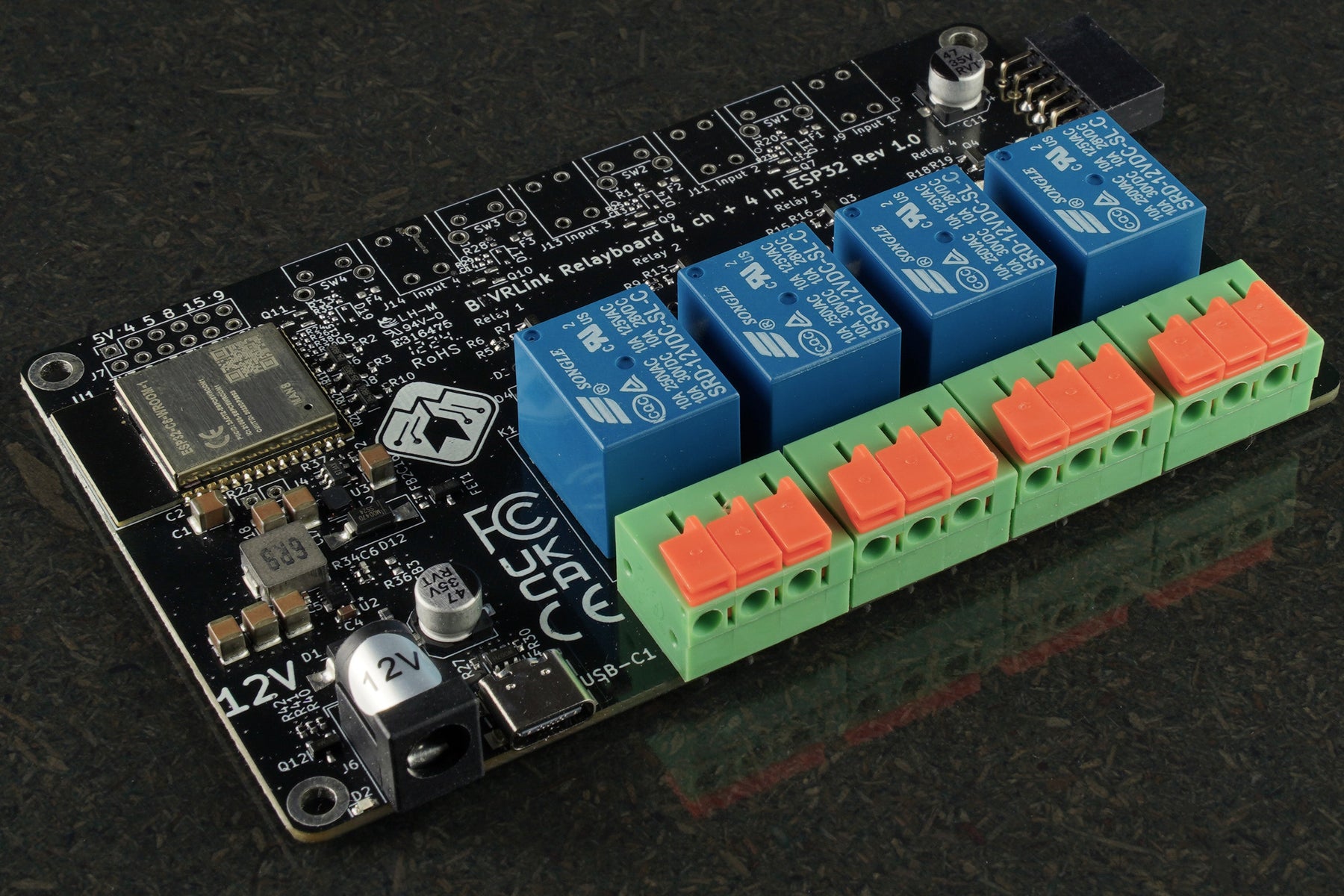

The 4 Channel Relay ESP32 Board is a compact and versatile solution for controlling high-power devices via WiFi, Bluetooth, or Zigbee. Equipped with 4 high-quality relays, it can handle loads up to 10A at 250V AC or 30V DC, making it ideal for various applications. The board is powered by a 12V/2A DC jack, ensuring reliable performance for home, hobby, or industrial automation projects.

The BEVRLink Relay Module is designed for simplicity and accessibility, making it perfect for both beginners and professionals. Clear documentation guides users through setup and operation, ensuring a smooth start. Featuring 4 relay channels with onboard LEDs for status indication, it facilitates easy monitoring. The ESP32-C6 module supports WiFi, Bluetooth, and Matter, offering advanced connectivity and efficient automation. Its multi-protocol support, powerful performance, and compatibility with platforms like ESPHome and Home Assistant make it a versatile and future-proof choice. Quick wire connections and plug-and-play BEVRLink system integration, along with compatibility with various BEVRLink accessories, provide a robust solution for home, hobby, or industrial automation needs.

Each of the 4 relays on the board is supplied directly from the power input, using only 15mA when active. The relays are of high quality, providing reliable and long-lasting performance.

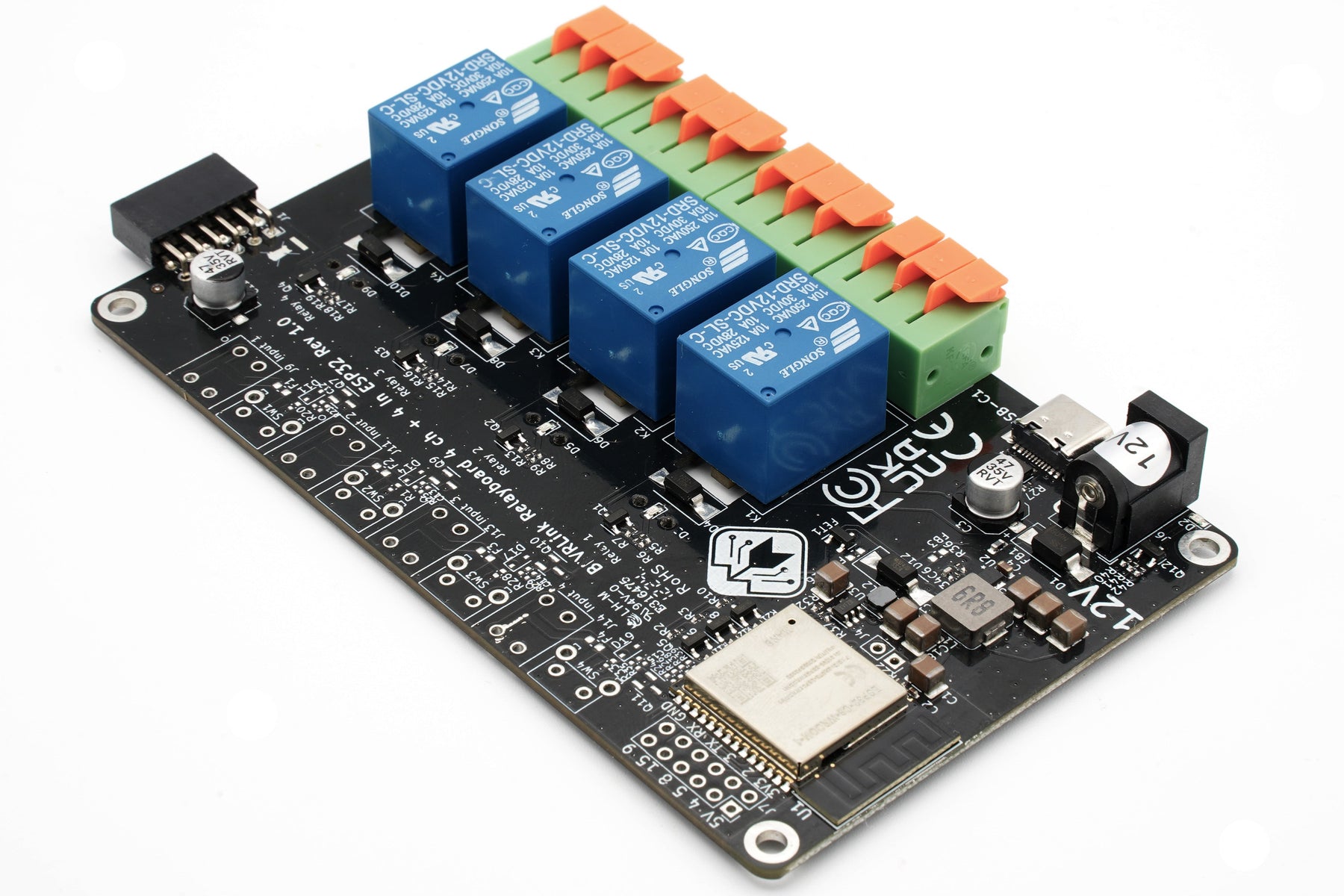

Cutting-Edge ESP32-C6 Module: The latest ESP32-C6 module equips your setup with advanced and versatile technology, capable of handling evolving automation needs. It supports multiple protocols, including WiFi, Bluetooth, Zigbee, and Matter, offering extensive integration flexibility for home automation and IoT devices. Start your home automation project with this single board and expand as needed with the BEVRLink system. The ESP32-C6 has ample power to run most code and integrates seamlessly with ESPHome and Home Assistant. A USB C connector is included for easy firmware updates and debugging.

The board features onboard LEDs to indicate the status of the relays, as well as a user controlled status LED. This makes it easy to quickly check the status of the board at a glance.

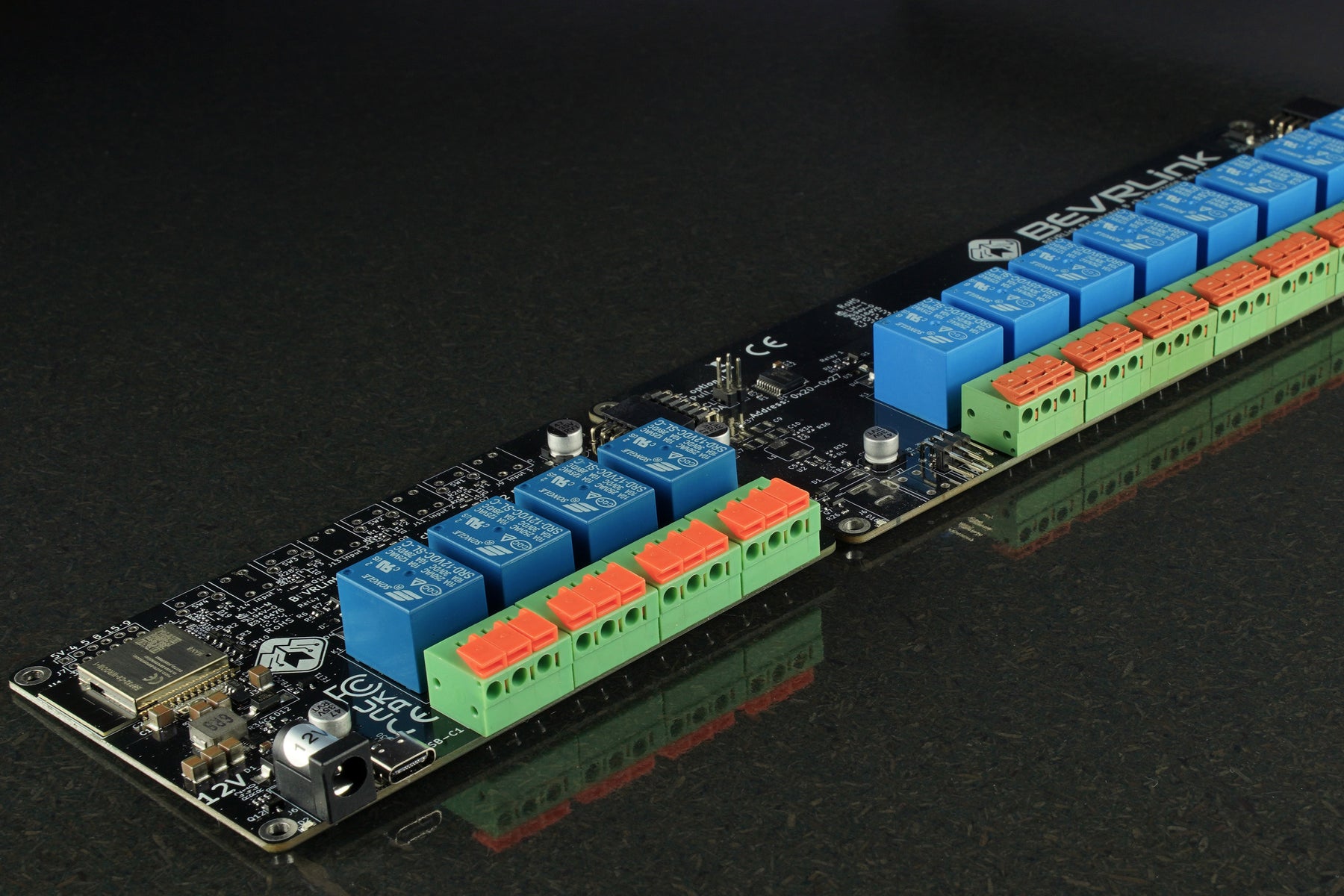

The board features an expansion connector, allowing for easy expansion of the system. The connector provides 5V/3.3A power to the connected modules. Communication is made with i2c making it possible to connect both to the BEVRLink system and other boards using i2c.

Features

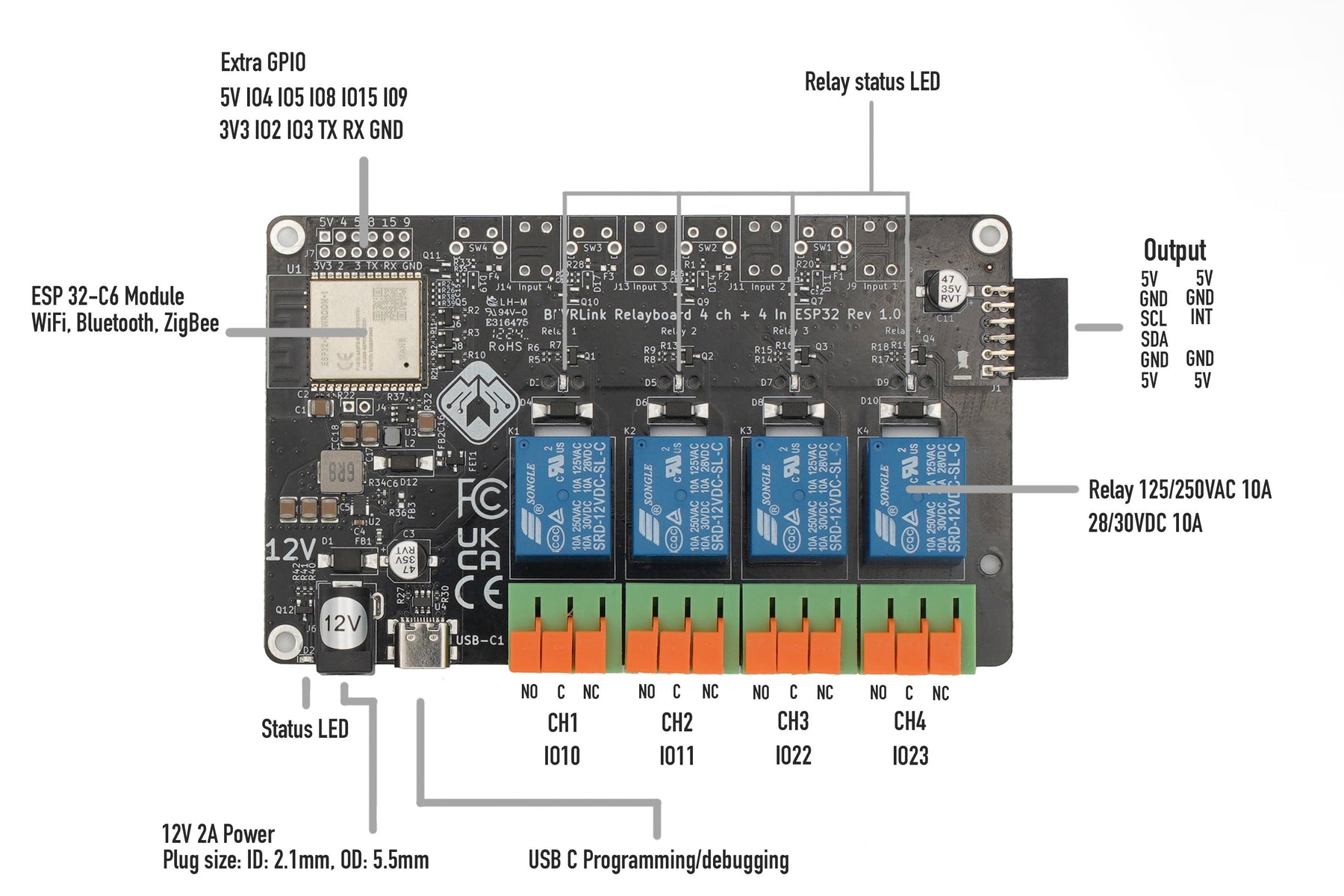

  • 12V/2A DC Jack power input 5.5x2.1mm
  • Relay coil supplied directly from power input, 15mA used by each relay active.
  • BEVRLink Expansion connector
  • The new ESP32-C6 module, able to communicate and be controlled over WiFi, Bluetooth, Zigbee, Matter and many more.
  • Standard rail mount bottom case
  • Onboard LEDs for indicating relays status
  • User controllable Status LED

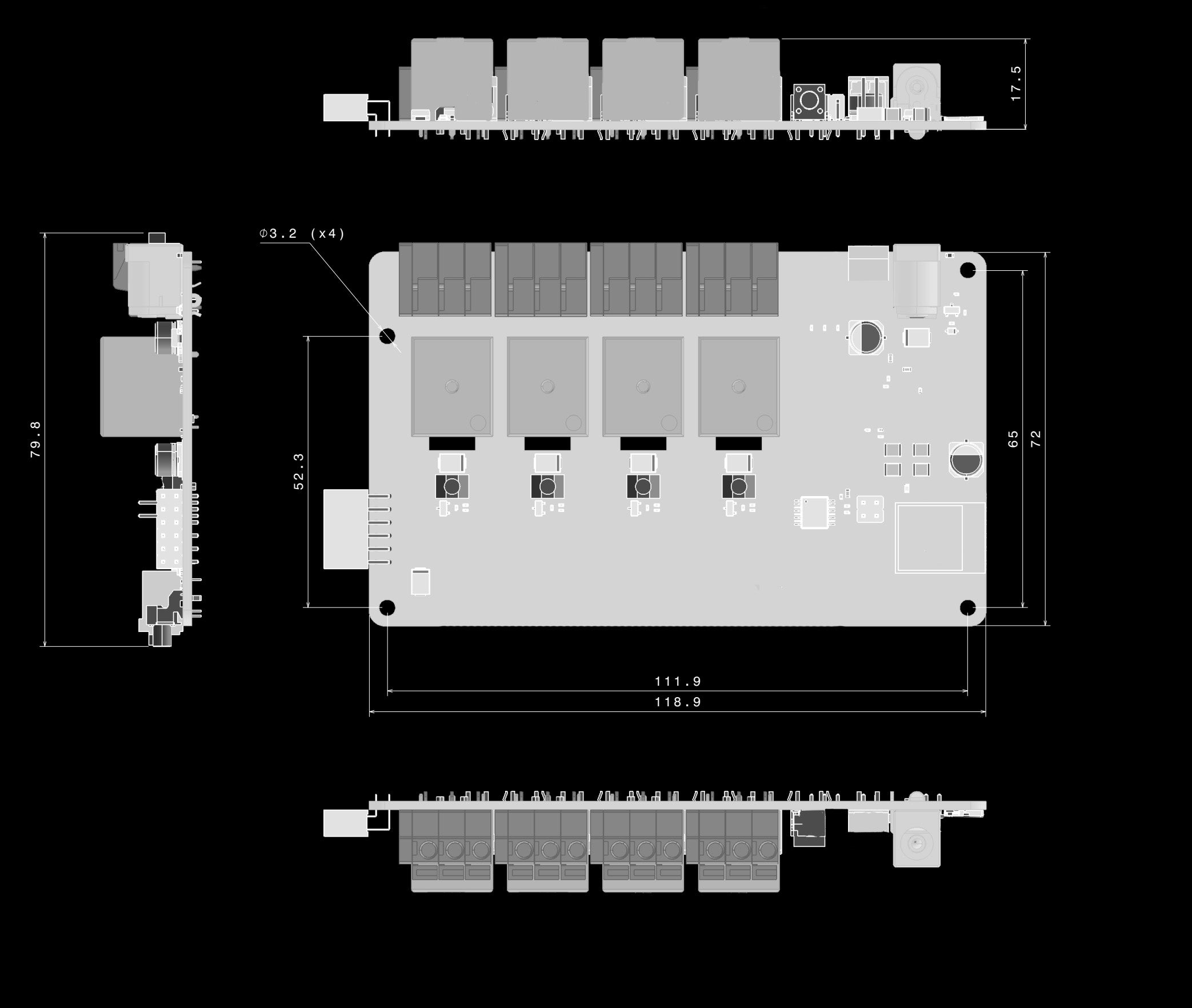

3D model / Dimensions

Examples and Guides

How To Expand With More Relay Boards

How To Expand With More Relay Boards

Get Started With BEVRLink 4 Relay + 4 Buttons with inbuilt ESP32 - Arduino IDE

Get Started With BEVRLink 4 Relay + 4 Buttons with inbuilt ESP32 - Arduino IDE

Get Started With BEVRLink 4 Relay + 4 Buttons with inbuilt ESP32 - ESPHome

Get Started With BEVRLink 4 Relay + 4 Buttons with inbuilt ESP32 - ESPHome

Example of Zigbee on BEVRLink ESP32 boards

Example of Zigbee on BEVRLink ESP32 boards

Example of applications

  • Home Automation: The ESP 4 Channel Relay Board can be used to control lights, fans, or other appliances in a smart home setup.
  • Industrial Control: The board's high-power relays can be used to control machinery or process equipment in an industrial setting.
  • Robotics: The board can be used to control motors, actuators, or other devices in a robotics system.
  • Lighting Control: The board can be used to switch on/off lights or dim them in stages, making it ideal for lighting control in buildings, hotels, and theaters.
  • Agriculture: The board can be used to control irrigation systems, pumps, or other equipment in agriculture applications.
  • HVAC: The board can be used to control heating, ventilation, and air conditioning systems in commercial or residential buildings.
  • Security Systems: The board can be used to control alarms, cameras, or other security devices in a surveillance system.
  • Laboratory Equipment: The board can be used to control power to various experiments or laboratory equipment.
  • Amusement Rides: The board can be used to control motors, actuators, or other devices in amusement park rides.
  • Medical Equipment: The board can be used to control various devices in medical equipment, such as dialysis machines or patient monitors.
