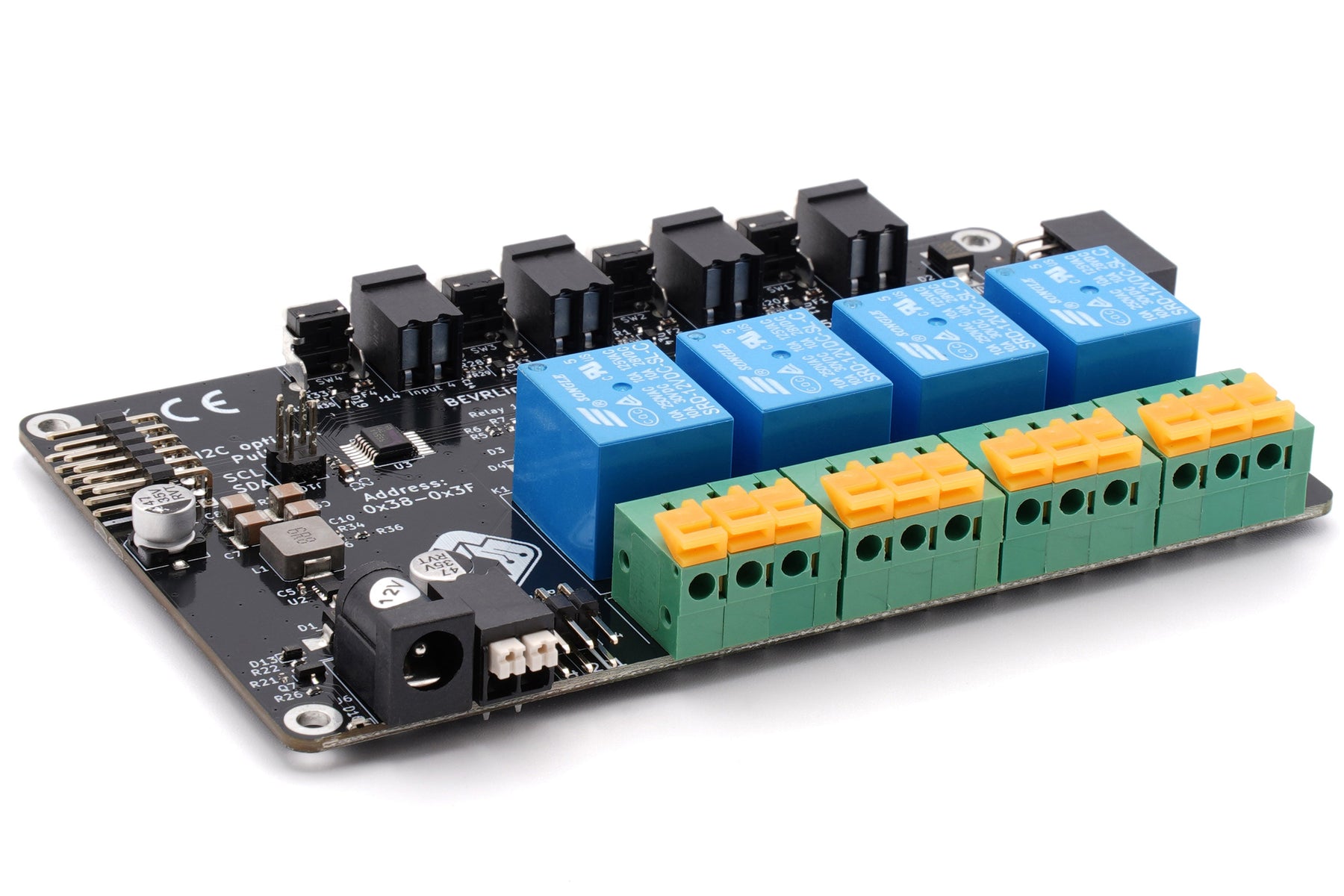

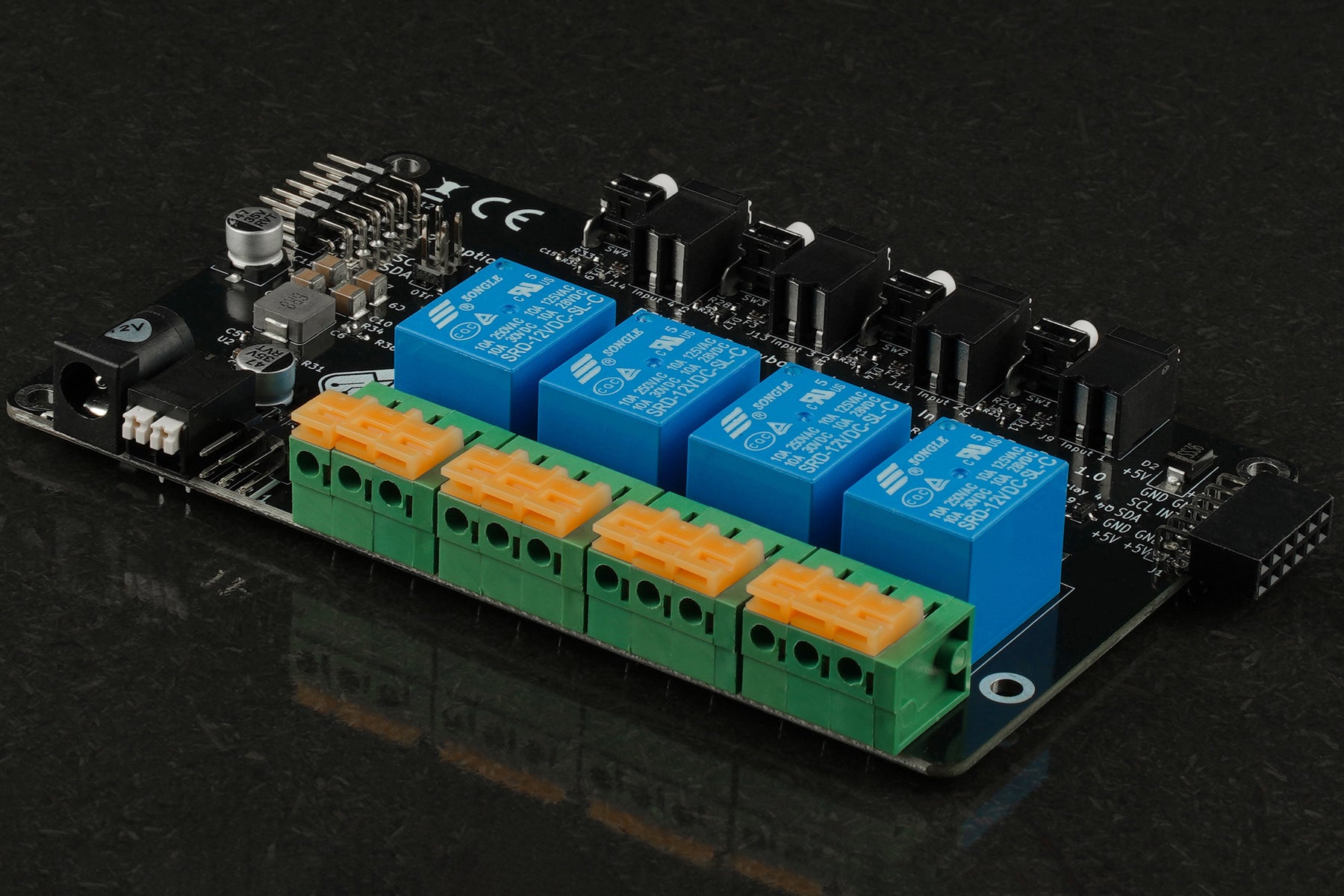

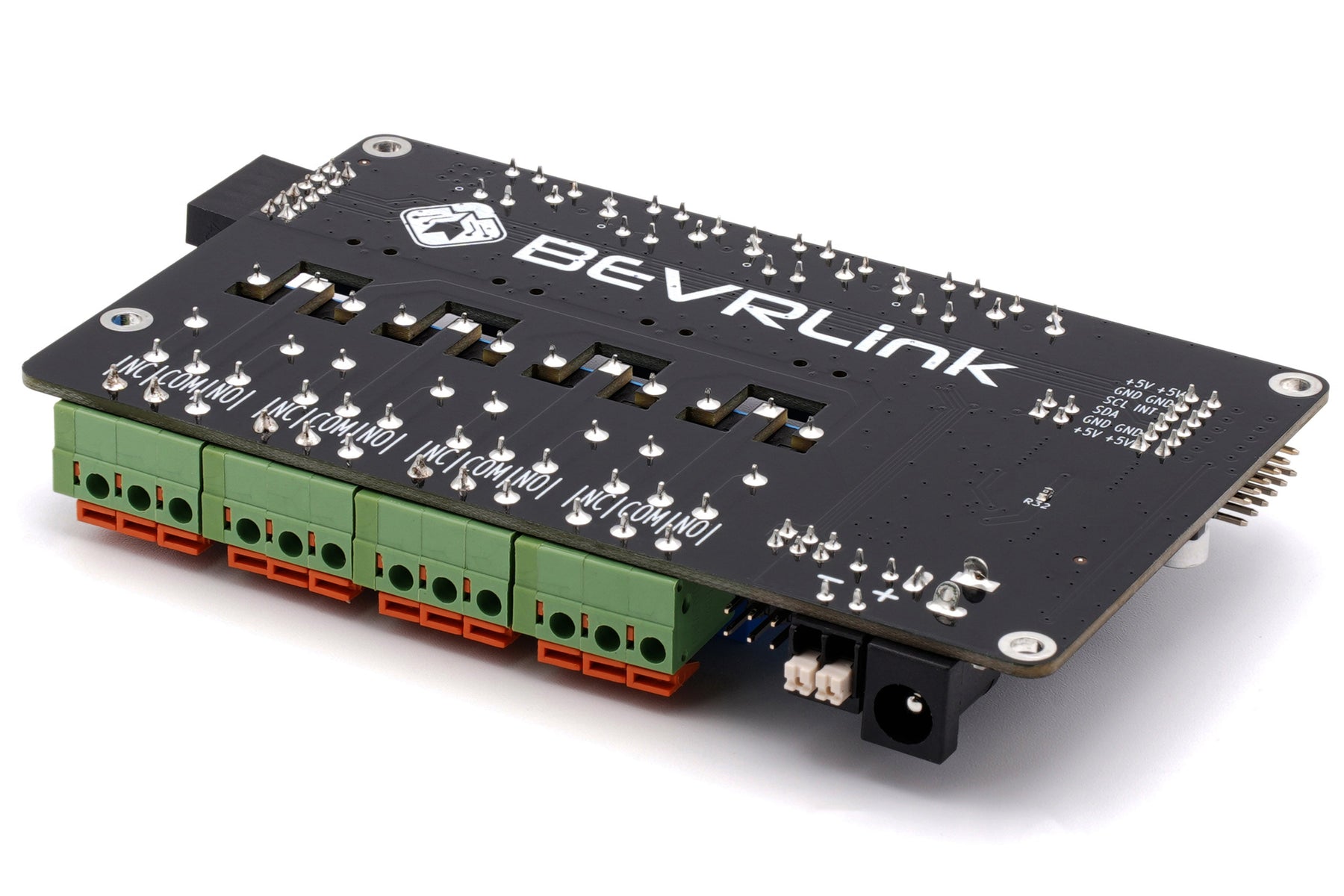

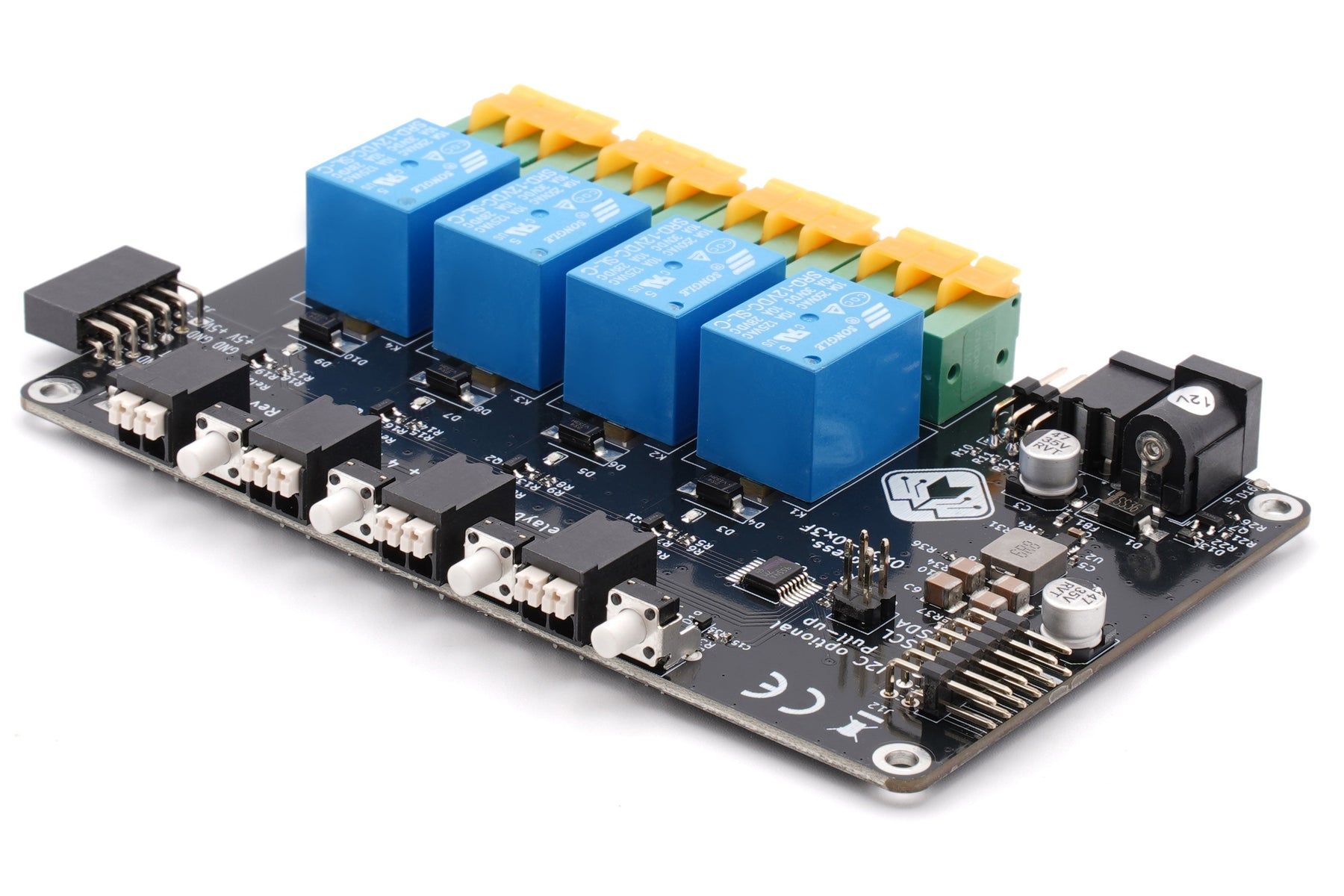

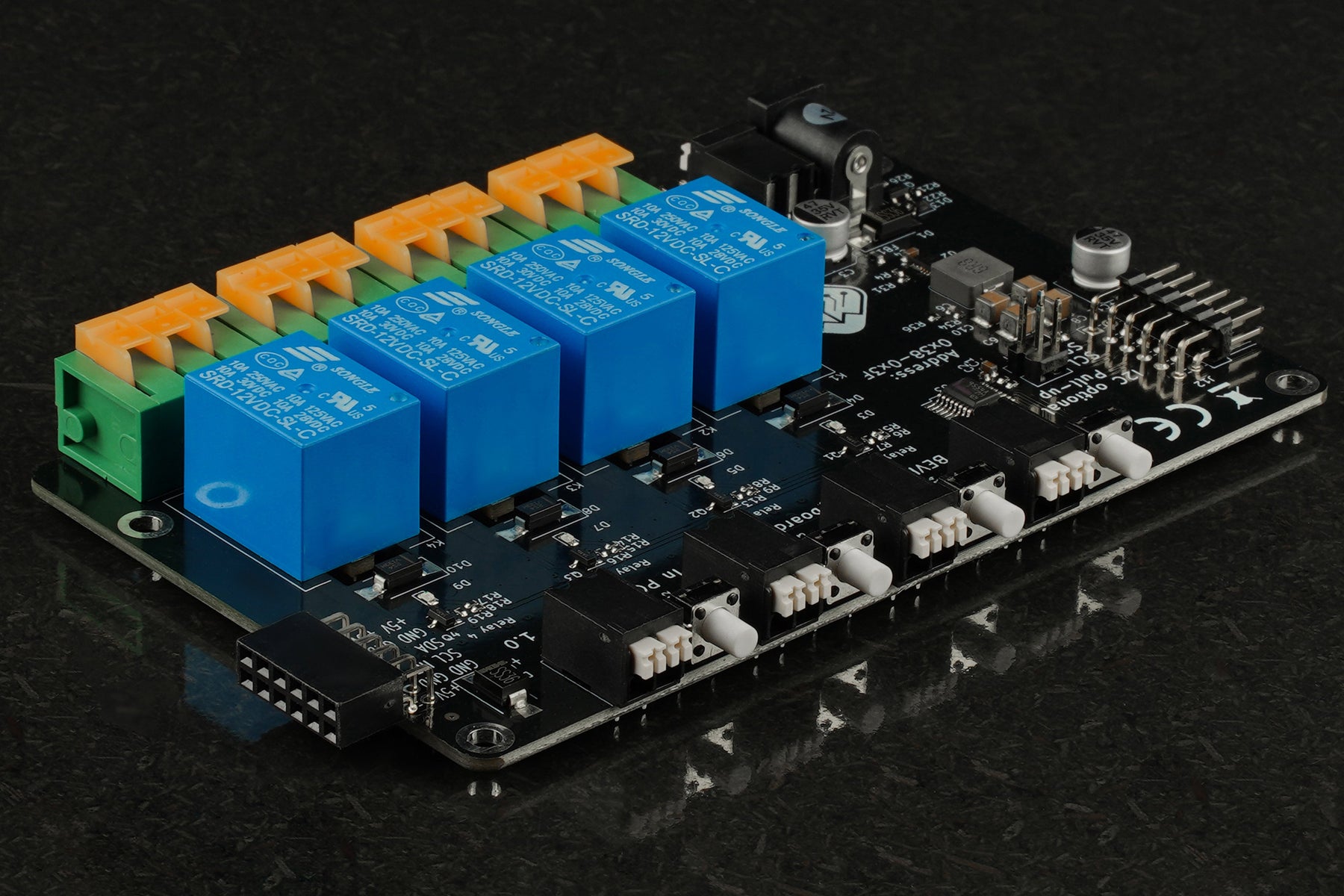

BEVRLINK 4 Channel Relay and 4 manual test buttons 12V

Overview

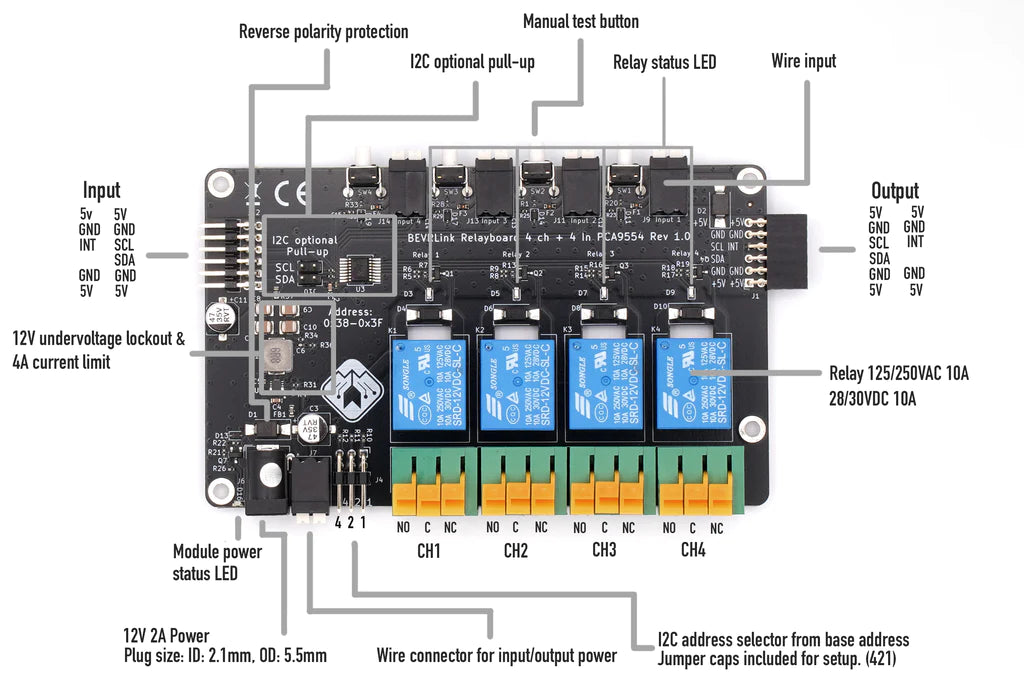

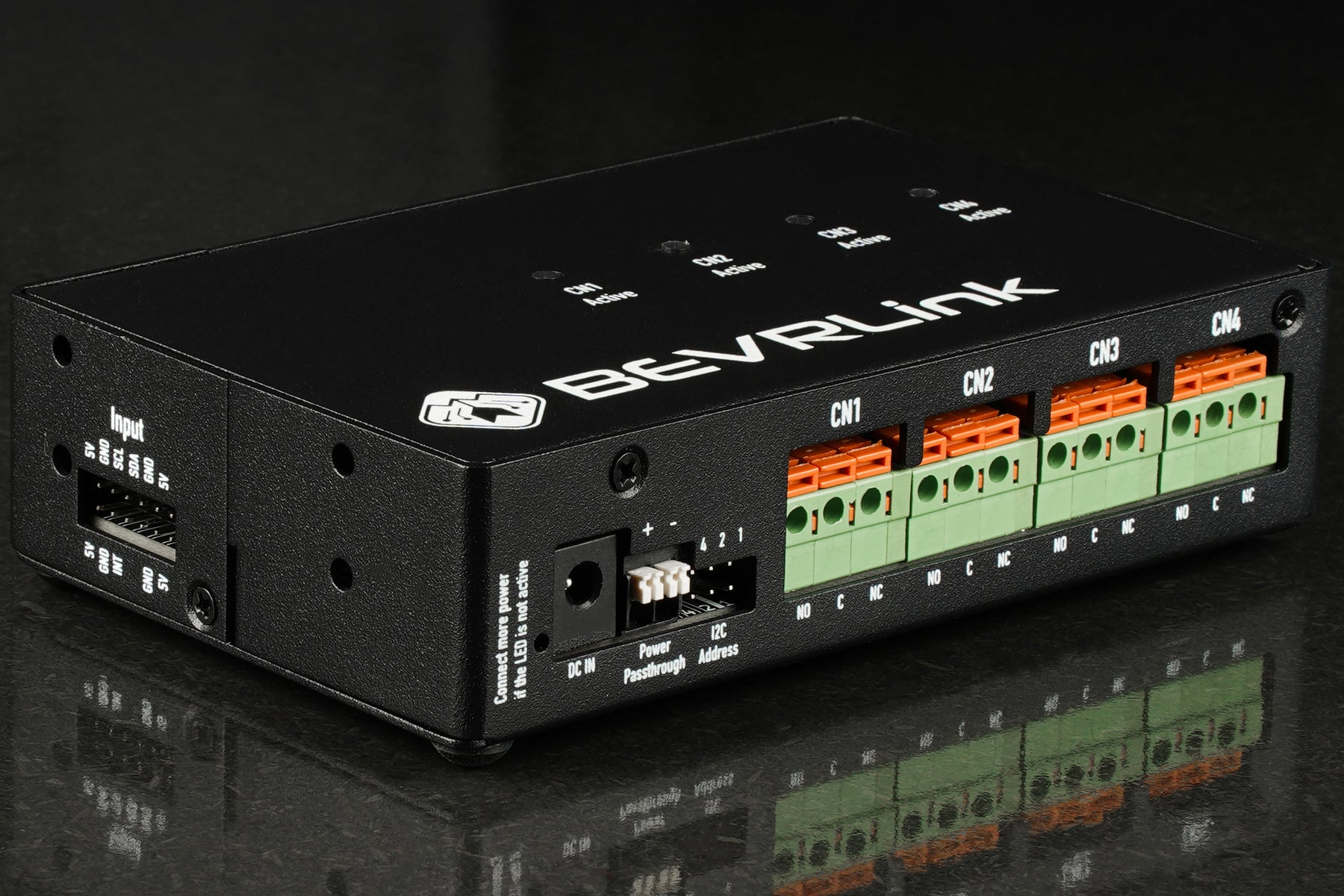

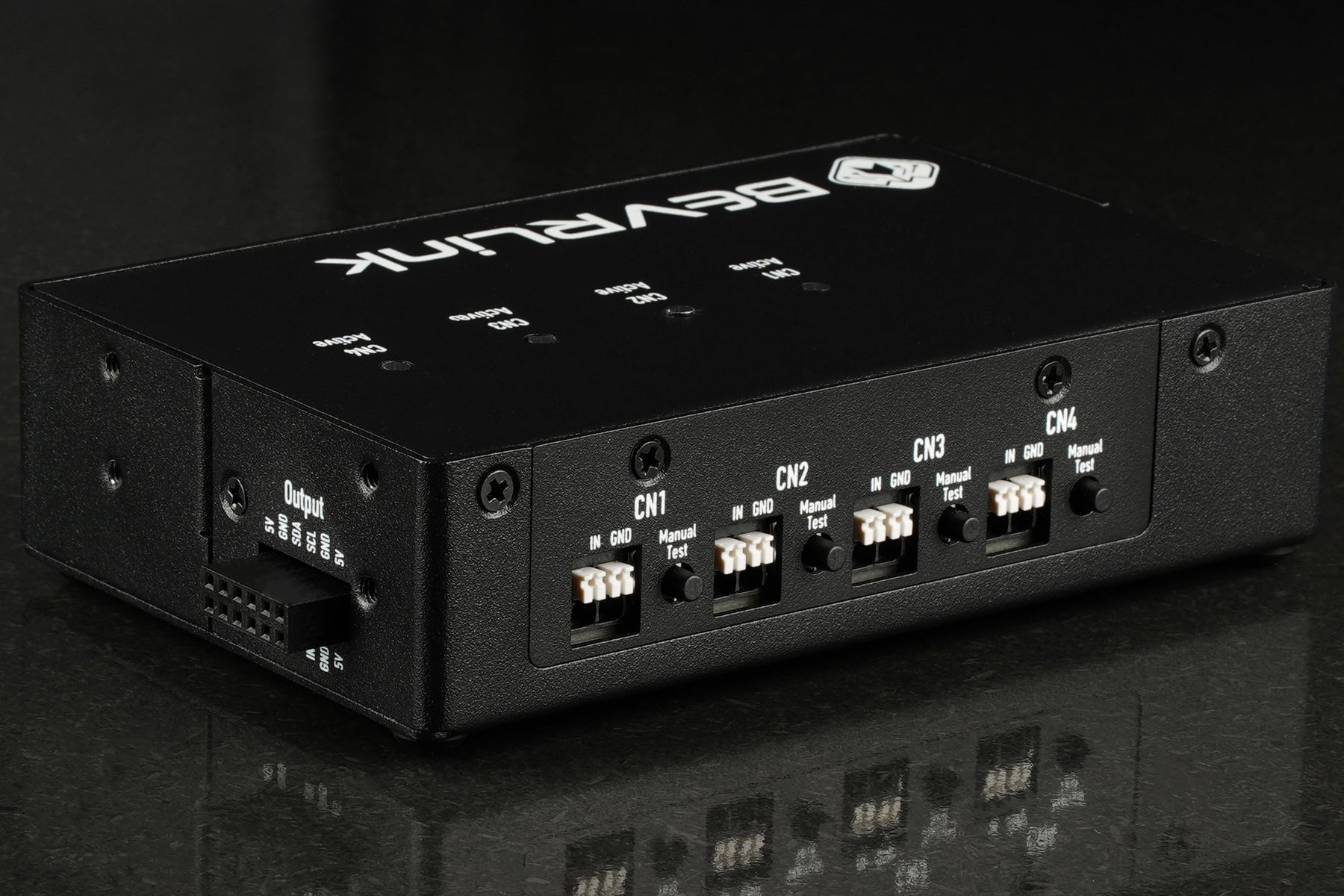

The BEVRLink relay module is a user-friendly solution suitable for users of all levels of experience. With clear documentation and easy setup, this module is perfect for beginners. It features 4 relay channels and 4 voltage-free input channels, each equipped with a button for convenient testing. The inputs can be connected without external power, and the module can send interrupts to a manager (e.g., Raspberry Pi) on input change. The onboard LEDs indicate relay status for easy monitoring. The BEVRLink relay module offers a standard rail mount bottom case, selectable I2C address, and an optional I2C 4.7K pull-up, making it simple to set up and use. Whether you're a beginner or an experienced user, the BEVRLink relay module is an ideal choice for controlling relays and inputs in your system.

• 4 high-quality relays with SPDT-NO, NC contact form
• Voltage-free inputs that can be triggered by NPN transistors, switches, or relays without external power
• 12V/2A DC Jack power input (5.5x2.1mm) and a 12V output connector for powering additional boards or loads
• Onboard LEDs to indicate relay and power status
• Manager and expansion connector providing 5V/3.3A power and compatibility with Raspberry Pi and additional modules
• Spring clamp terminal block connectors for easy input and output connections
• Selectable I2C addresses (0x38-0x3F) and optional 4.7K pull-up

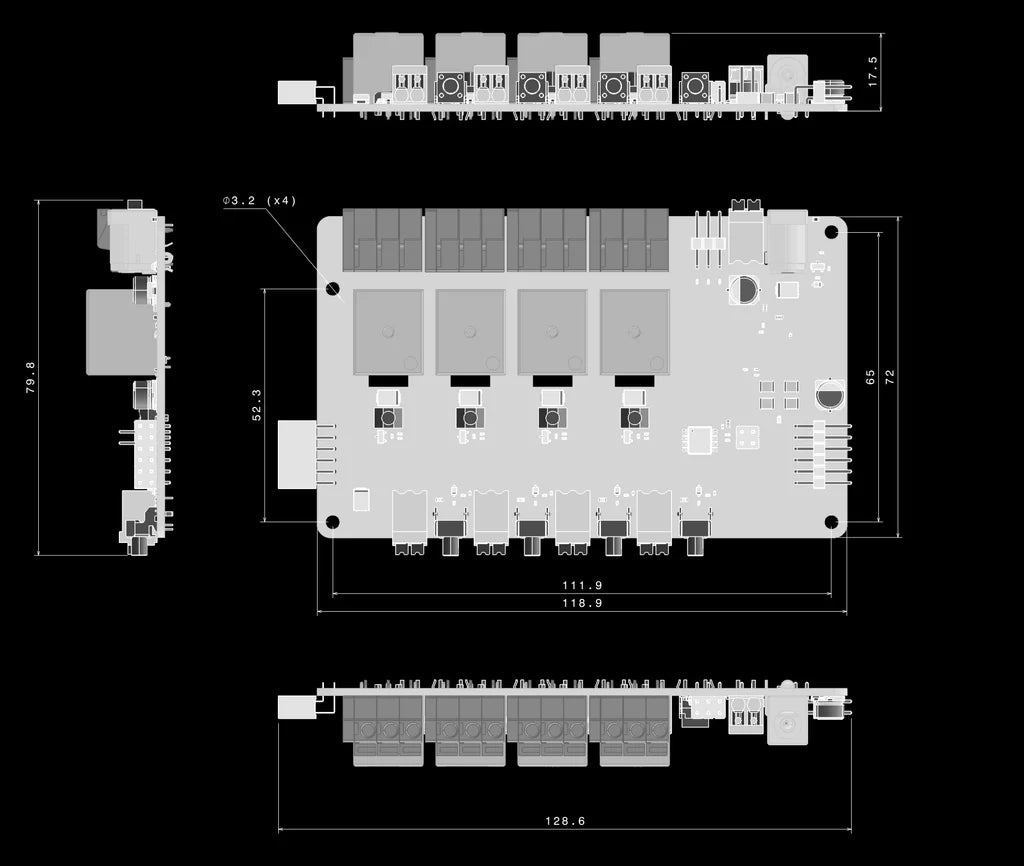

• Dimensions: 118.87 mm x 72 mm with M3 mounting hole size

• Each relay uses only 15mA when active and is supplied directly from the power input
• High-quality relays for reliable performance
• Suitable for switching loads up to 5A 250V AC or 5A 30V DC
